Mountaineering Pack 40L

#sew#design 2022

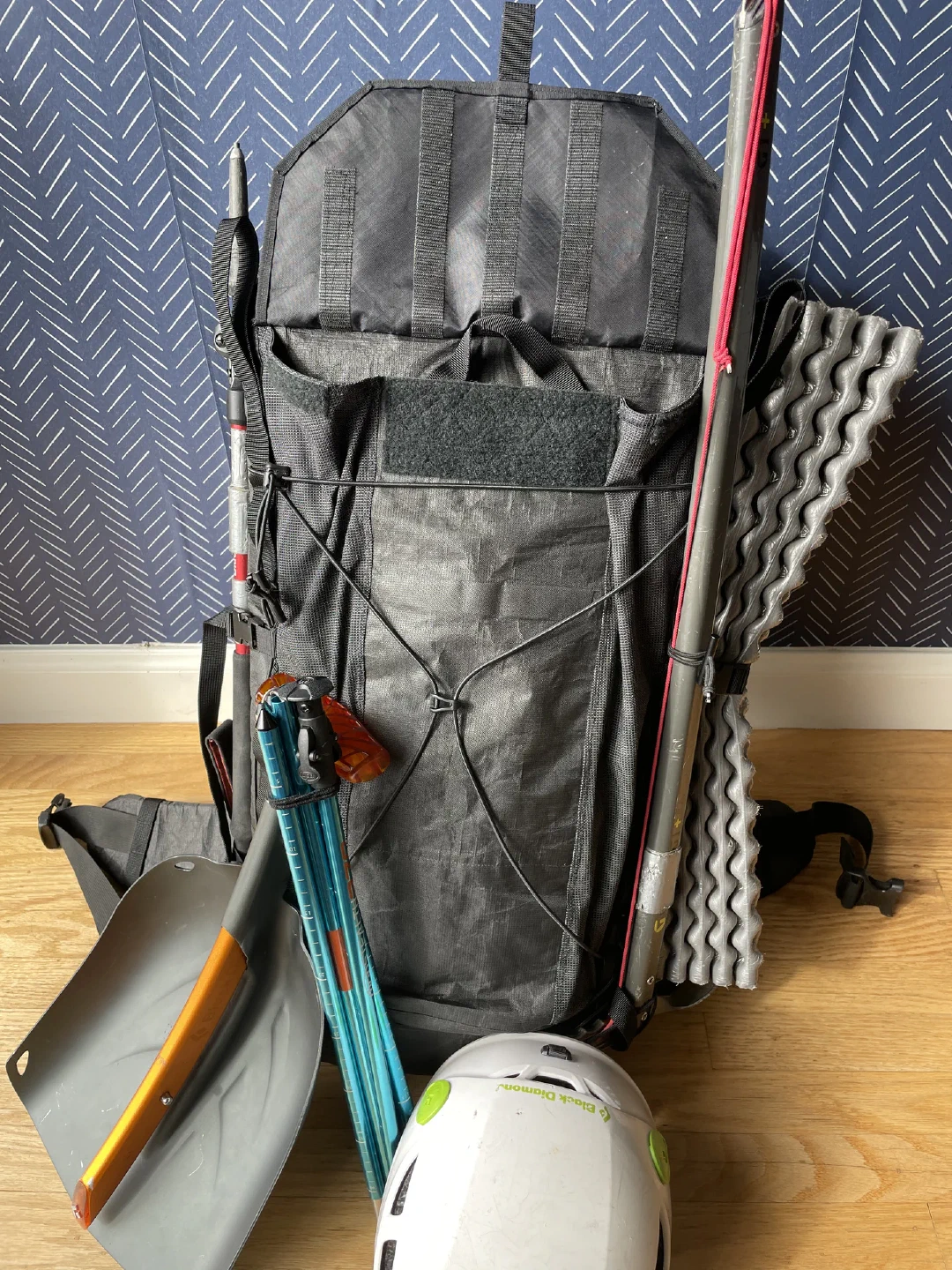

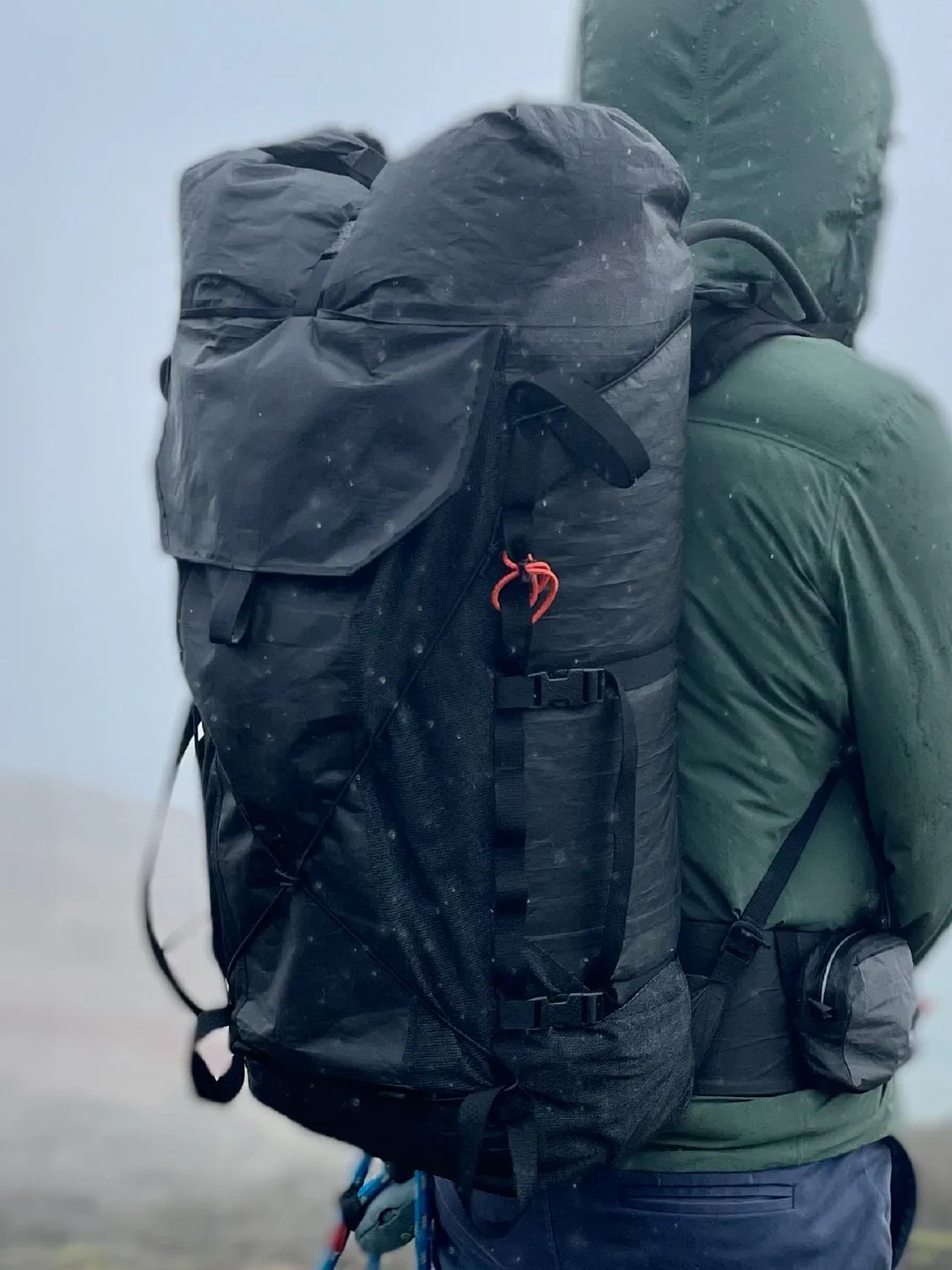

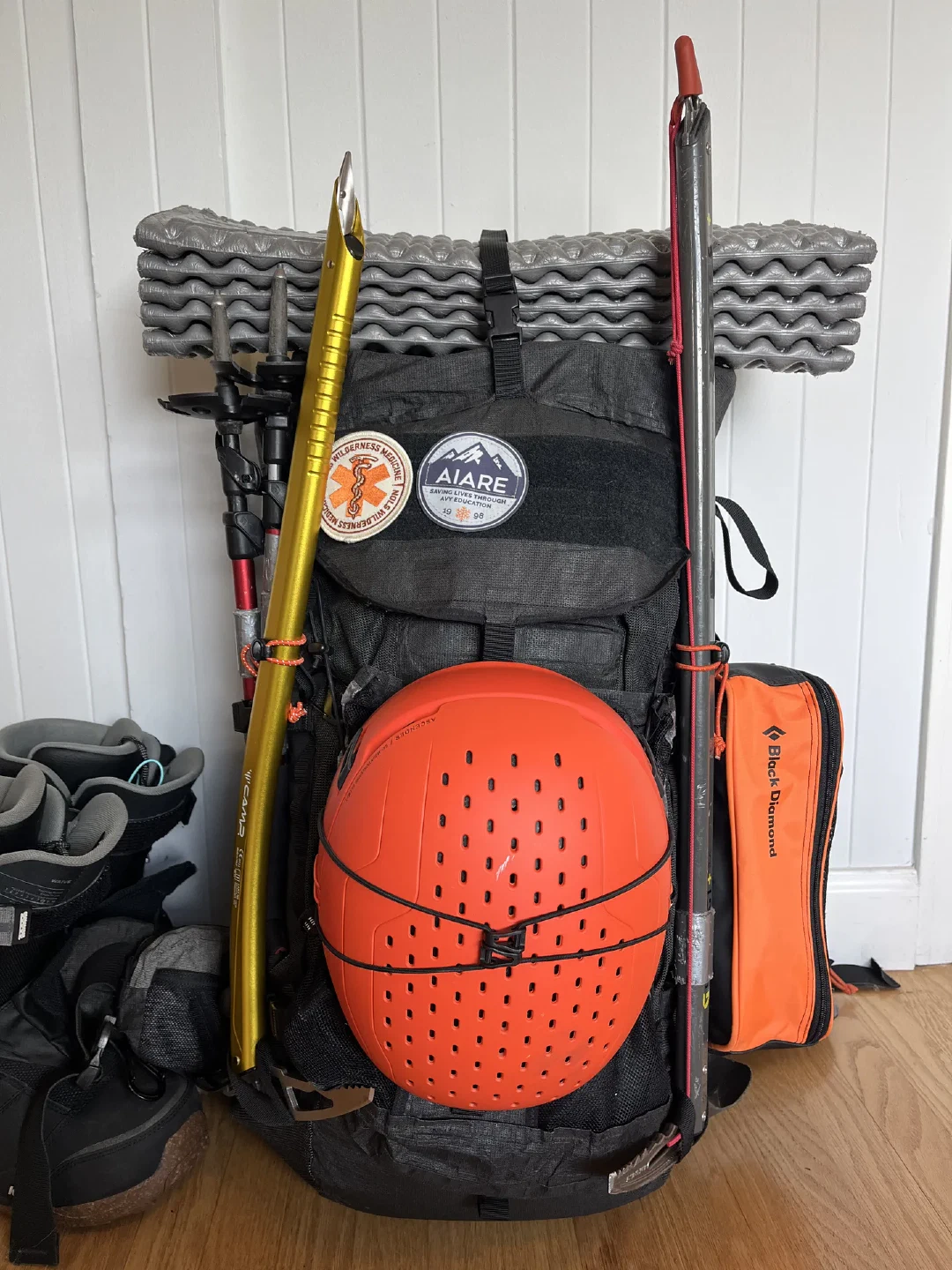

Kitted for the alpine: helmet bungeed, ice axes, poles, crampons, and foam pad up top.Loaded pack worn from behind in coastal rain and fog, rolltop cinched, with optional hipbelt pouch and hydration hose routed through shoulder port.Tool pocket flap open, staged with winter kit.

Rolltop pack for mountaineering and ski touring. Sewn from Challenge Ultra 100 and 200 with Venom stretch mesh. Light, durable, and water resistant.

This bag has joined me everywhere since making it - skiing in Banff, splitboarding Mt Baker, Yosemite backcountry, Bugaboos spires, and tours all seasons around Lake Tahoe.

One of my favorite things when making kit for myself is salvaging and repurposing unusual components:

Since the initial design, I’ve extended the rolltop collar to 55L capacity.

I made this bag to replace my Katabatic Gear Artemis 55, which had been my do-everything bag for years - Denali, New Zealand, Morocco, British Columbia, and all of my early Cascades summits (Shasta, Hood, St Helens).

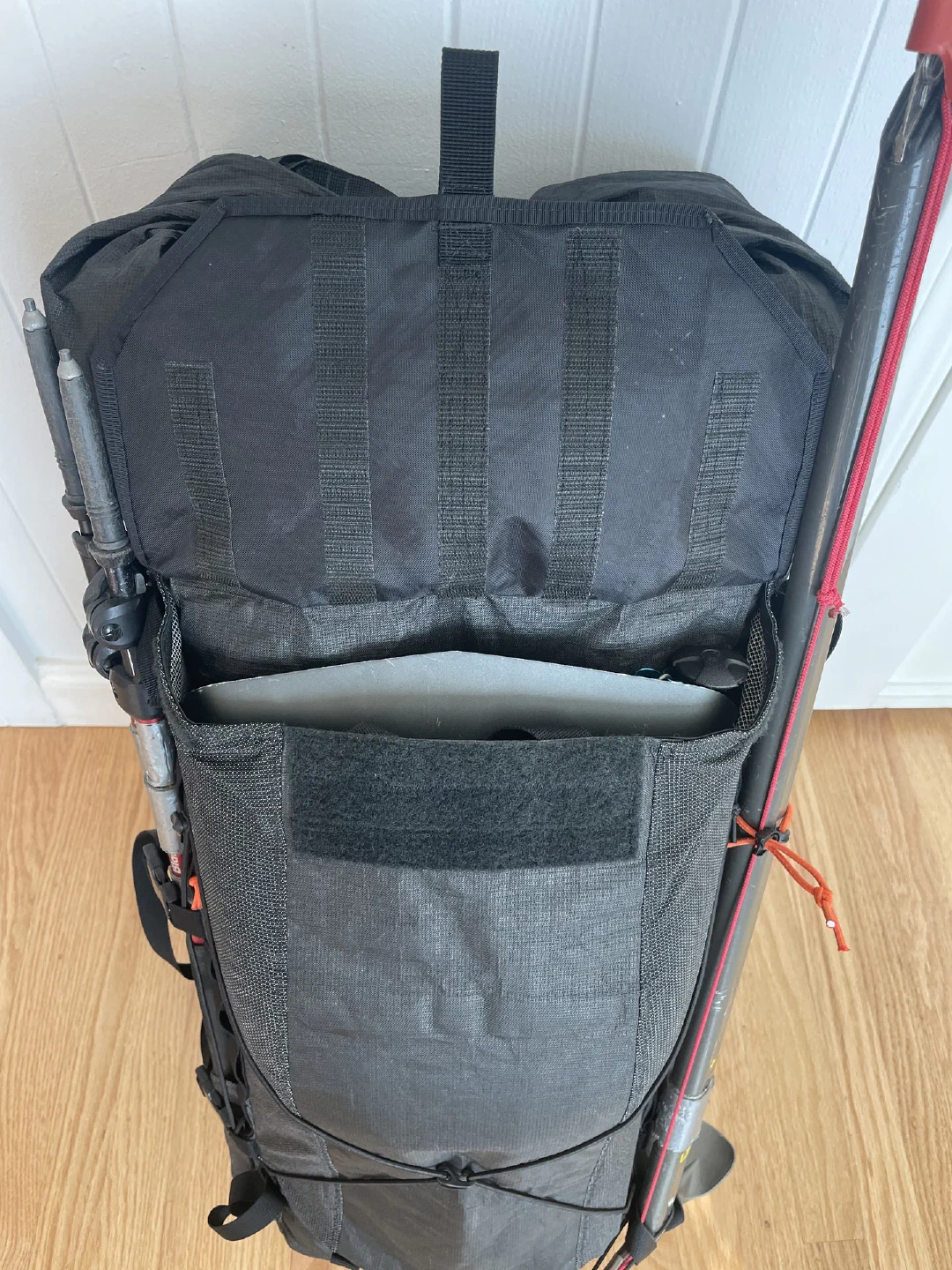

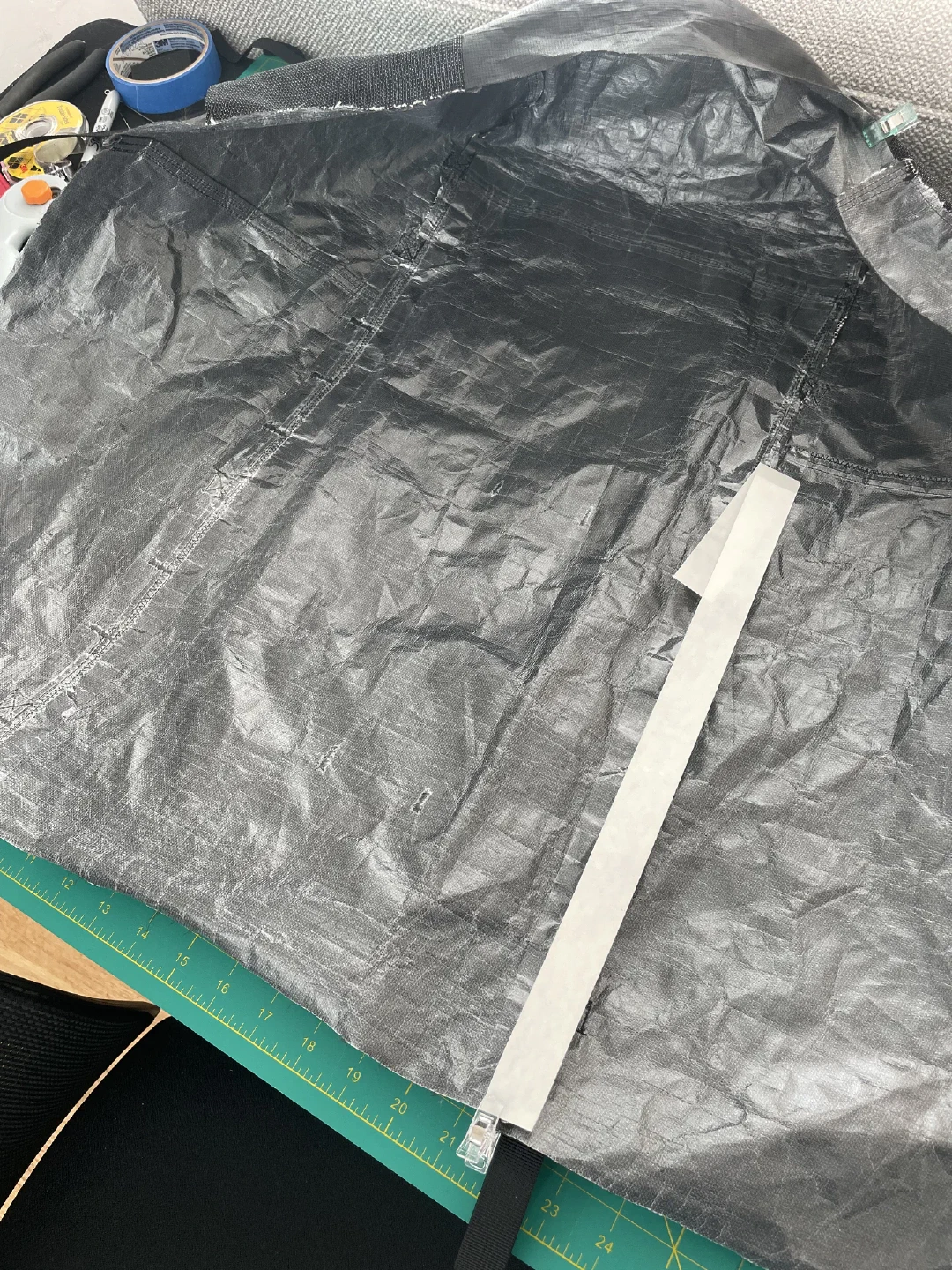

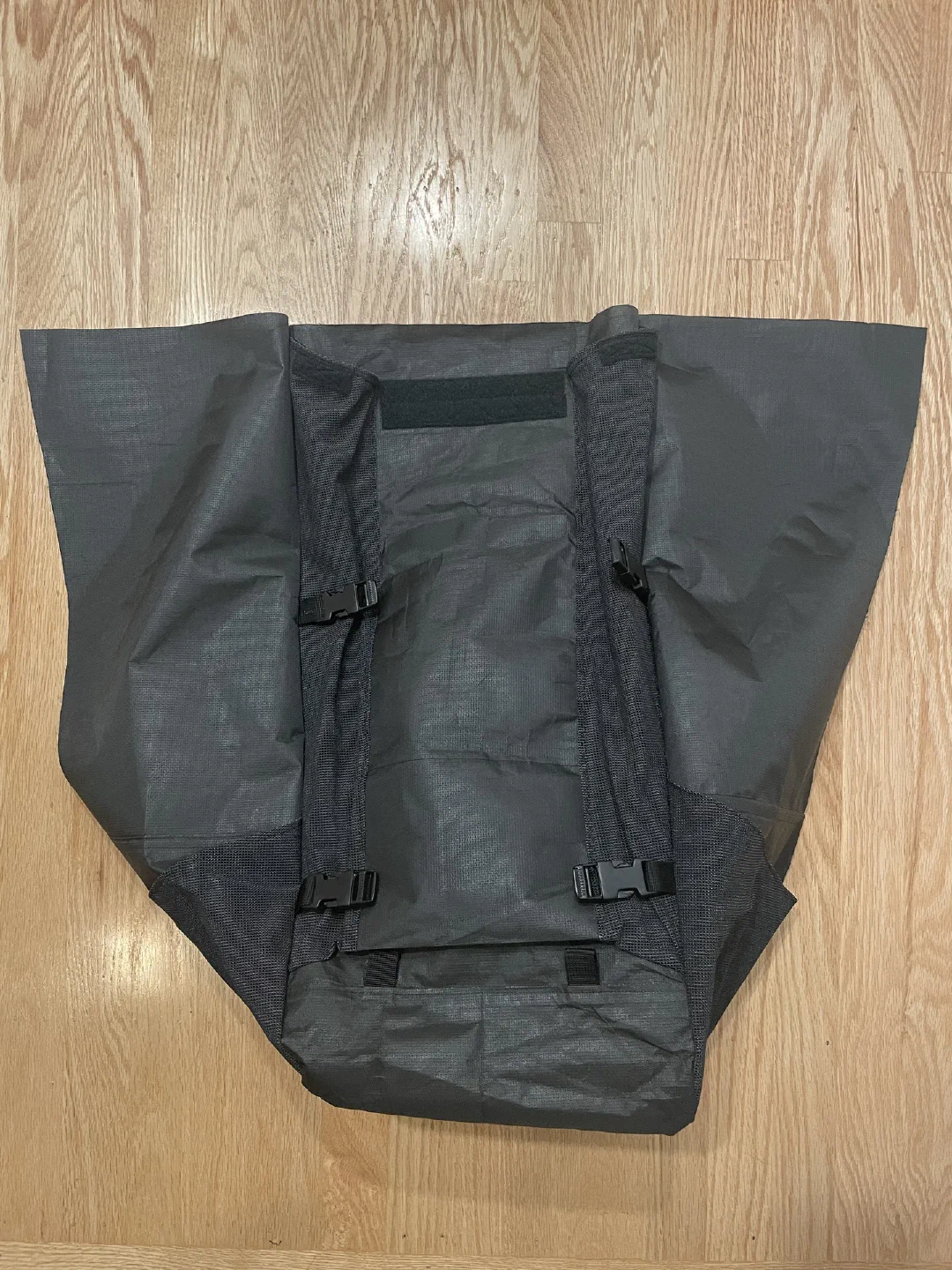

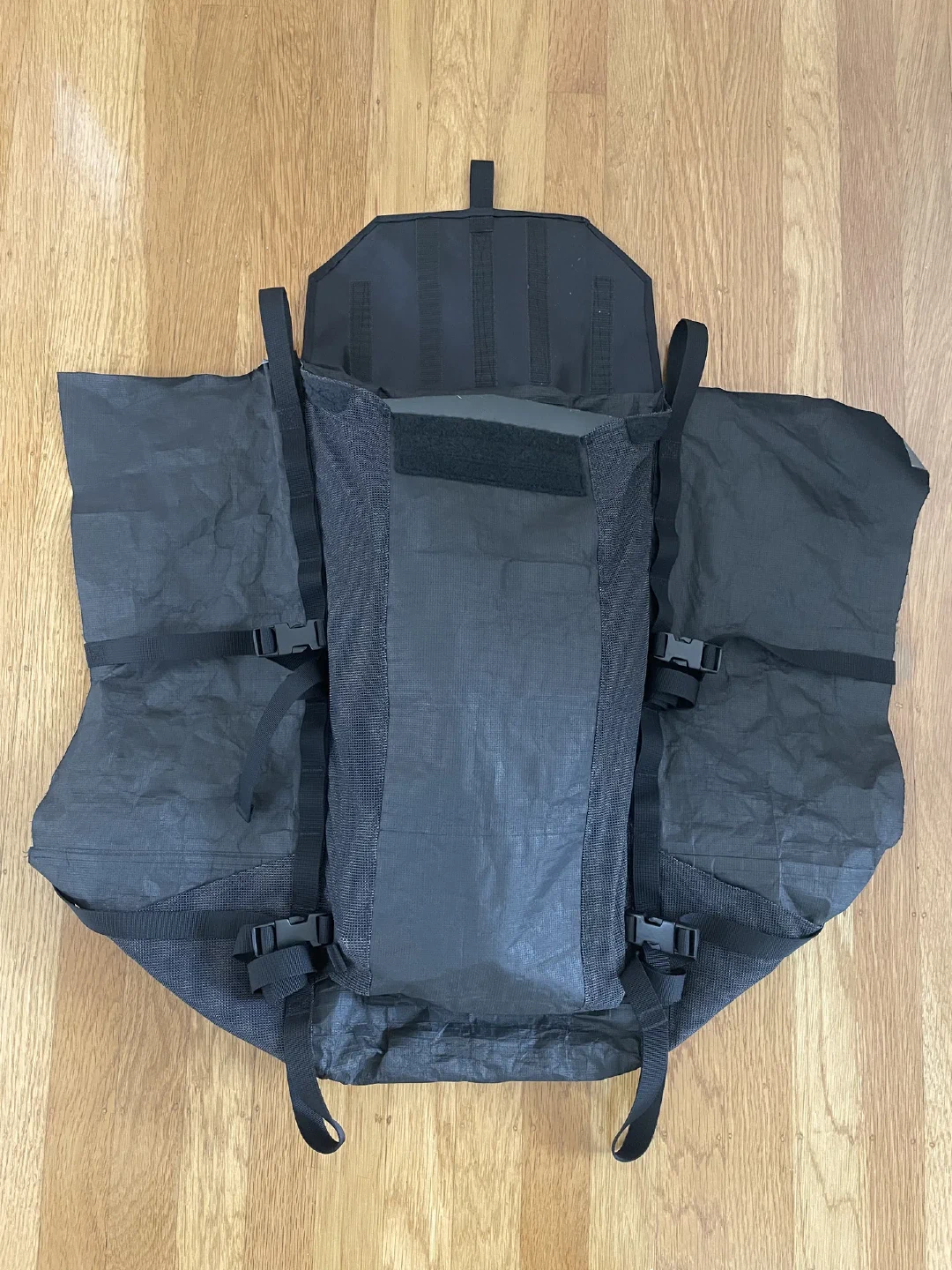

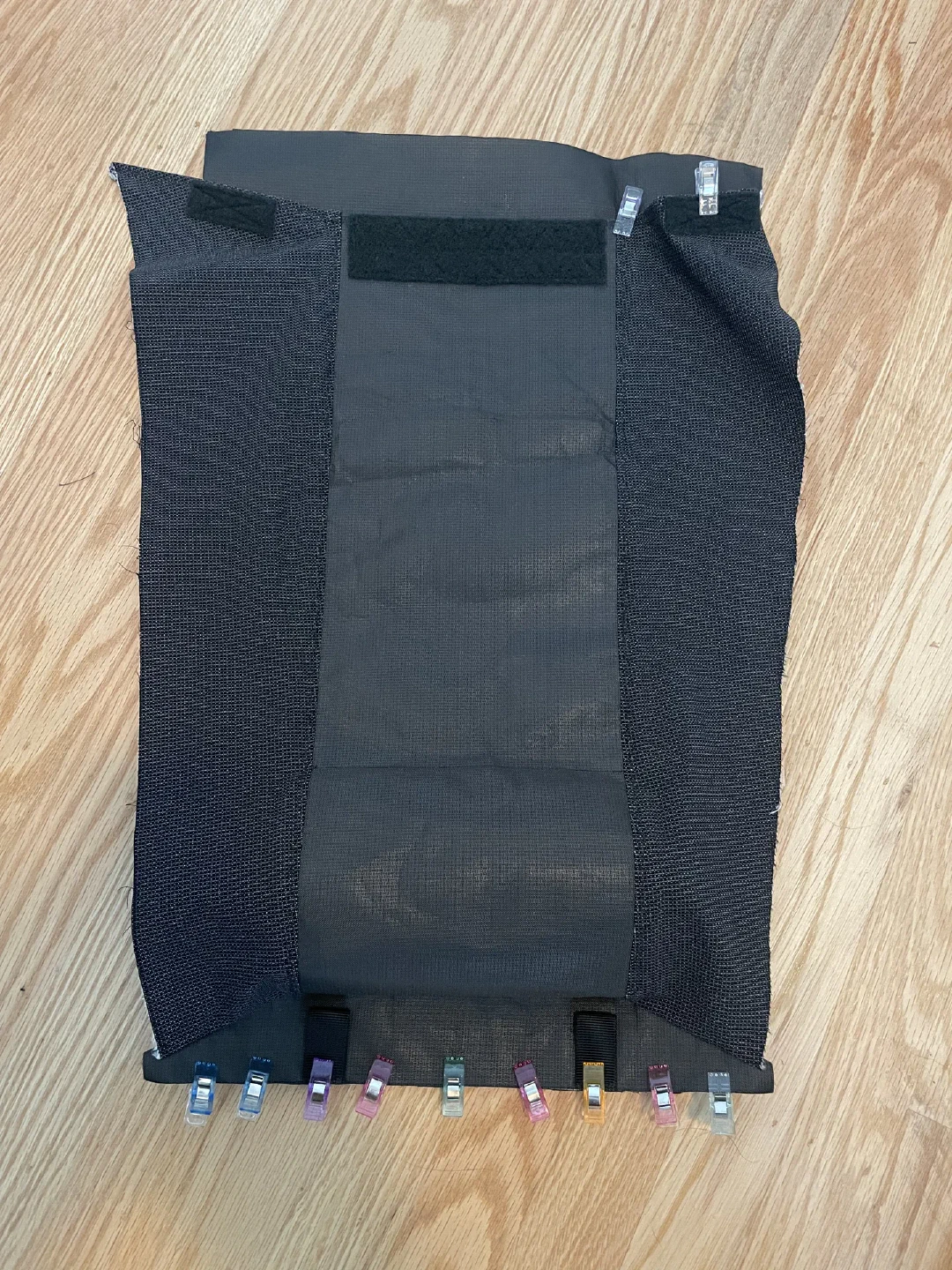

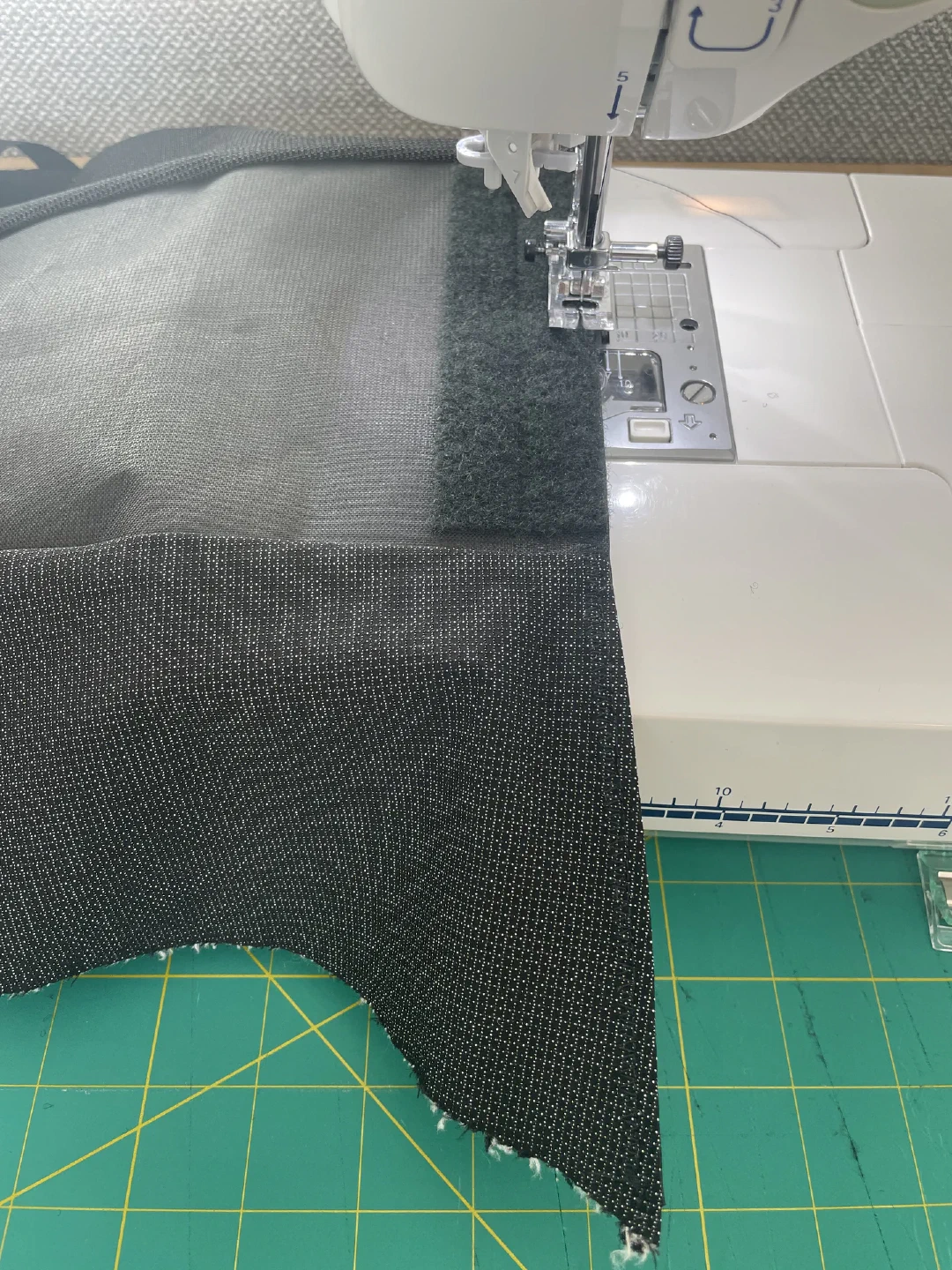

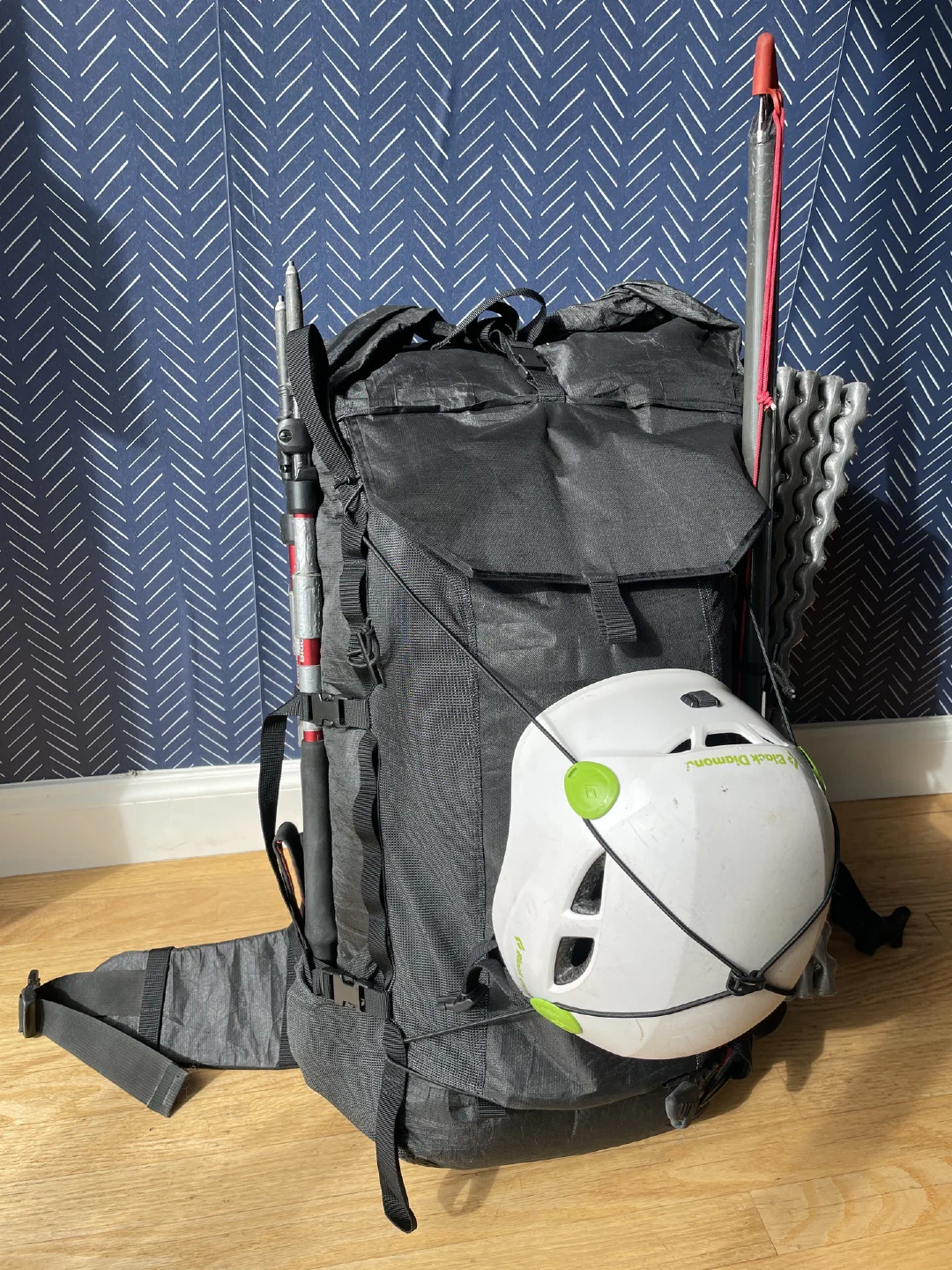

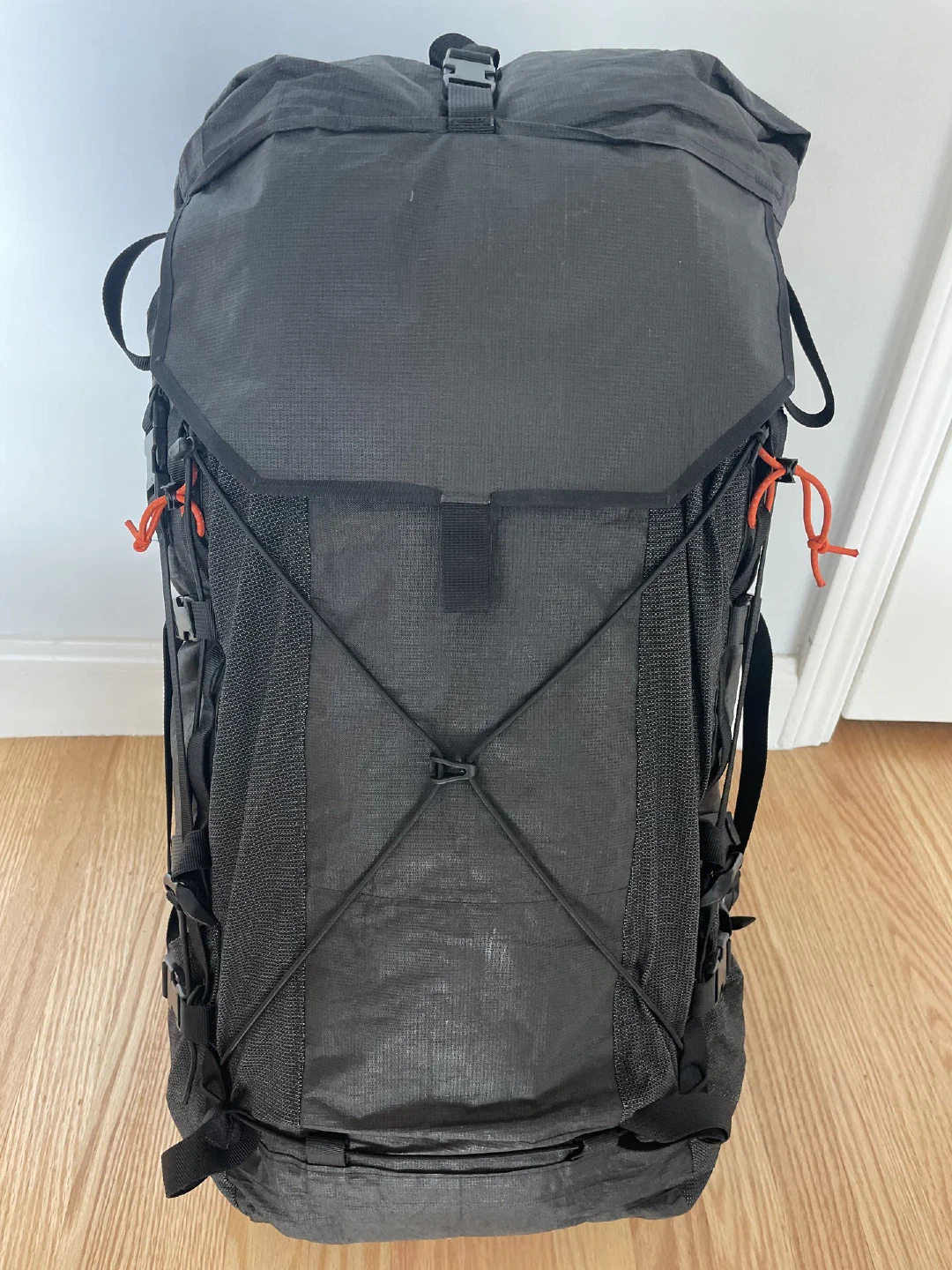

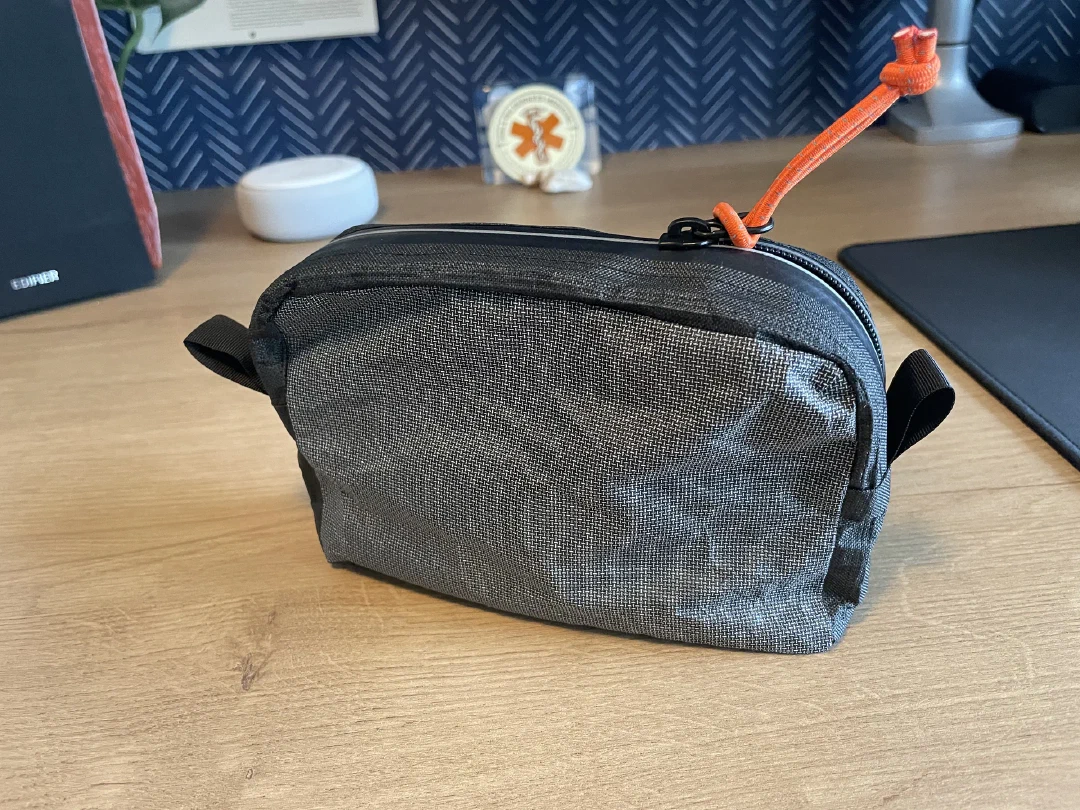

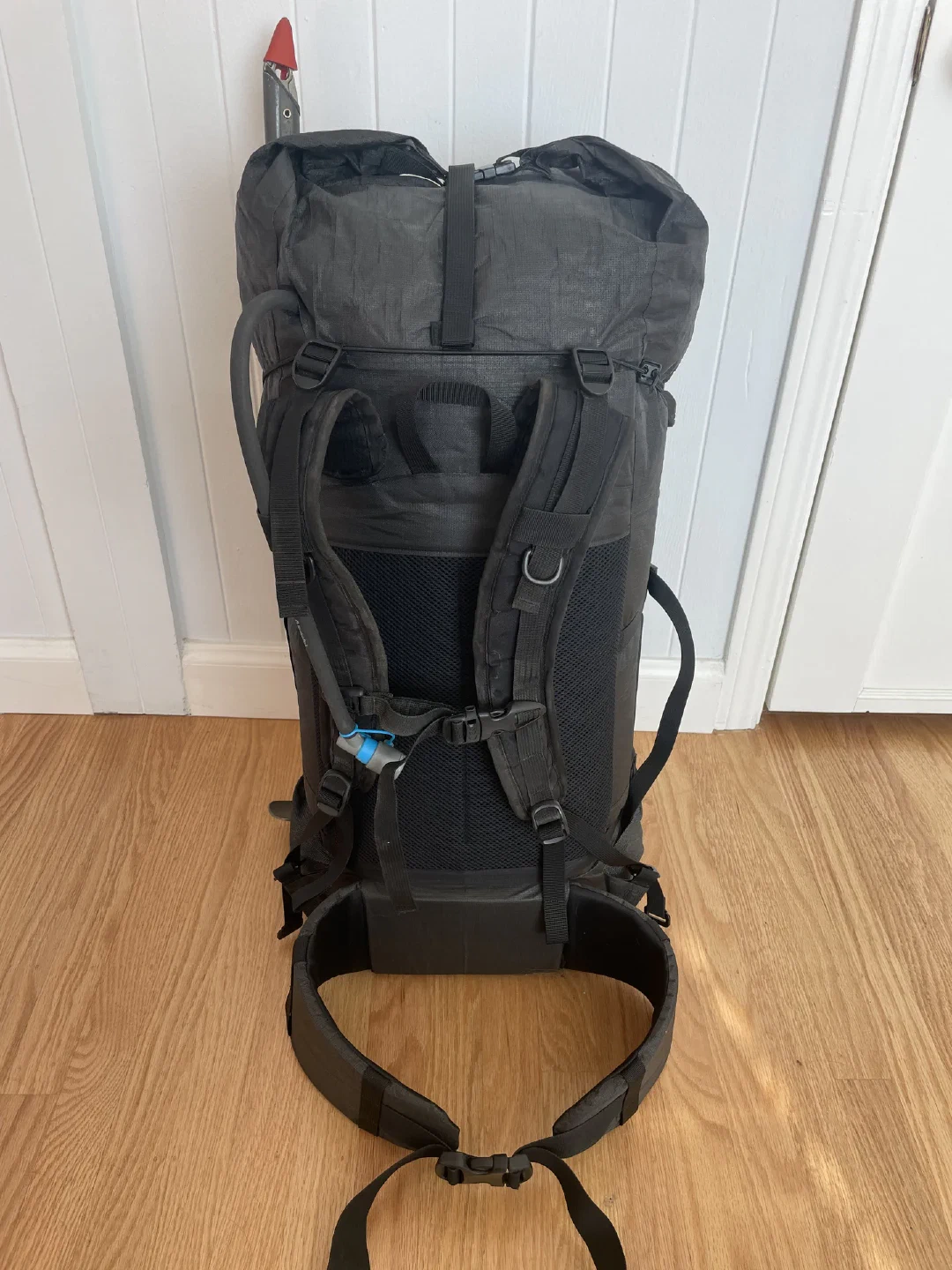

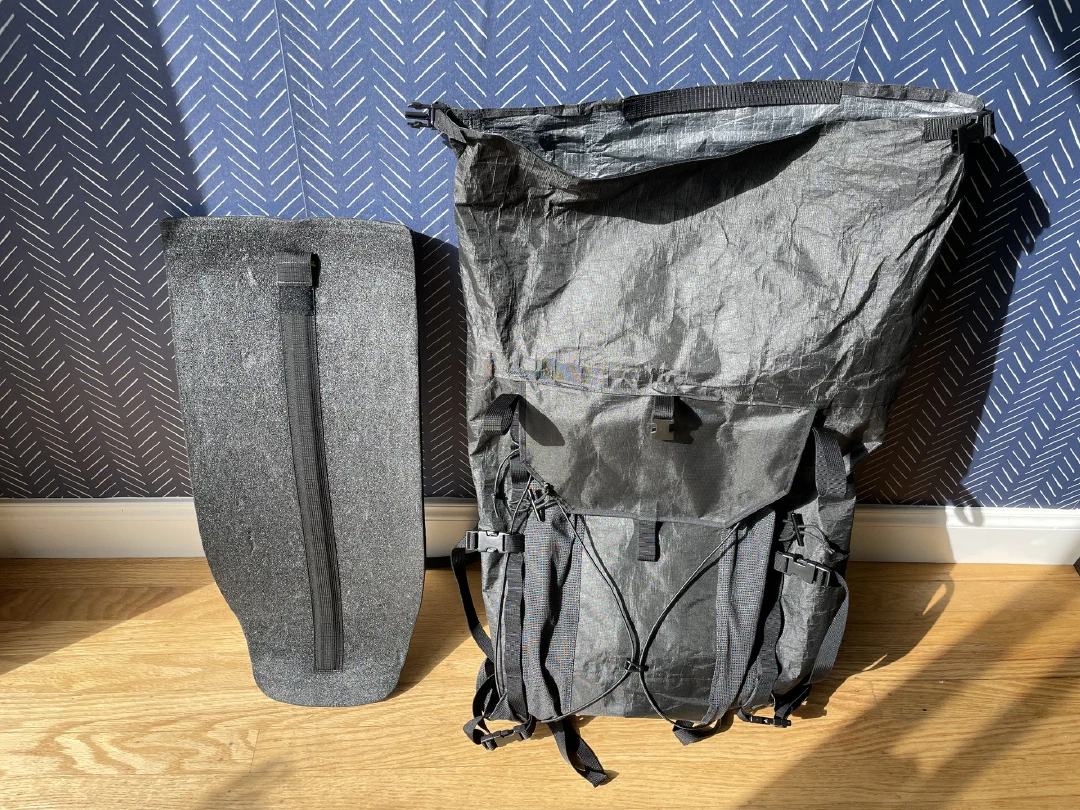

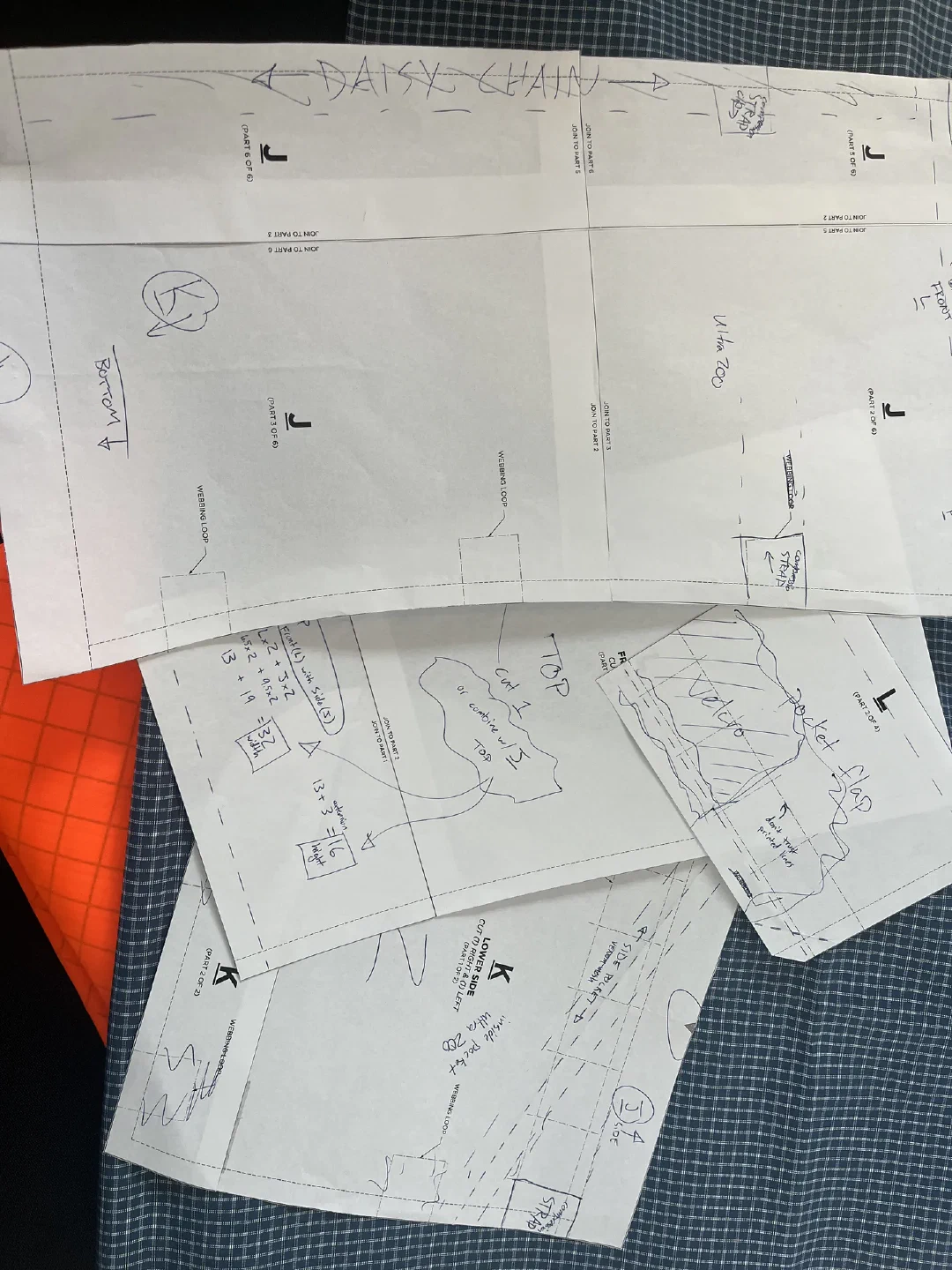

Pattern sheets, mid-iteration and hand-annotated with measurements and change notes.Assembling the front stretch pocket.Feeding front pocket through the sewing machine.Seam taping the interior of the main pack body.The assembled front pocket, main body side walls, and side pockets with webbing buckles attached.Daisy chains with tool loops, compression straps, and pocket flap attached to front pocket and main body side walls. Tip of avalanche shovel blade peeking out of pocket for scale.Removable padded framesheet and contoured aluminum stay sheath, standing beside the empty packFully assembled - view of the finished harness: shoulder straps, load lifters, and removable hipbelt.Removable hip pouch with waterproof zipper.Front pocket loaded with avalanche tools, ice axe and poles attached at sides.Loaded with rock helmet bungeed on front. Poles, ice axe and foam pad clipped to sides.The finished pack standing upright, bungee crossed over the front pocket.
