Travel Duffle 30L

#sew#design 2024

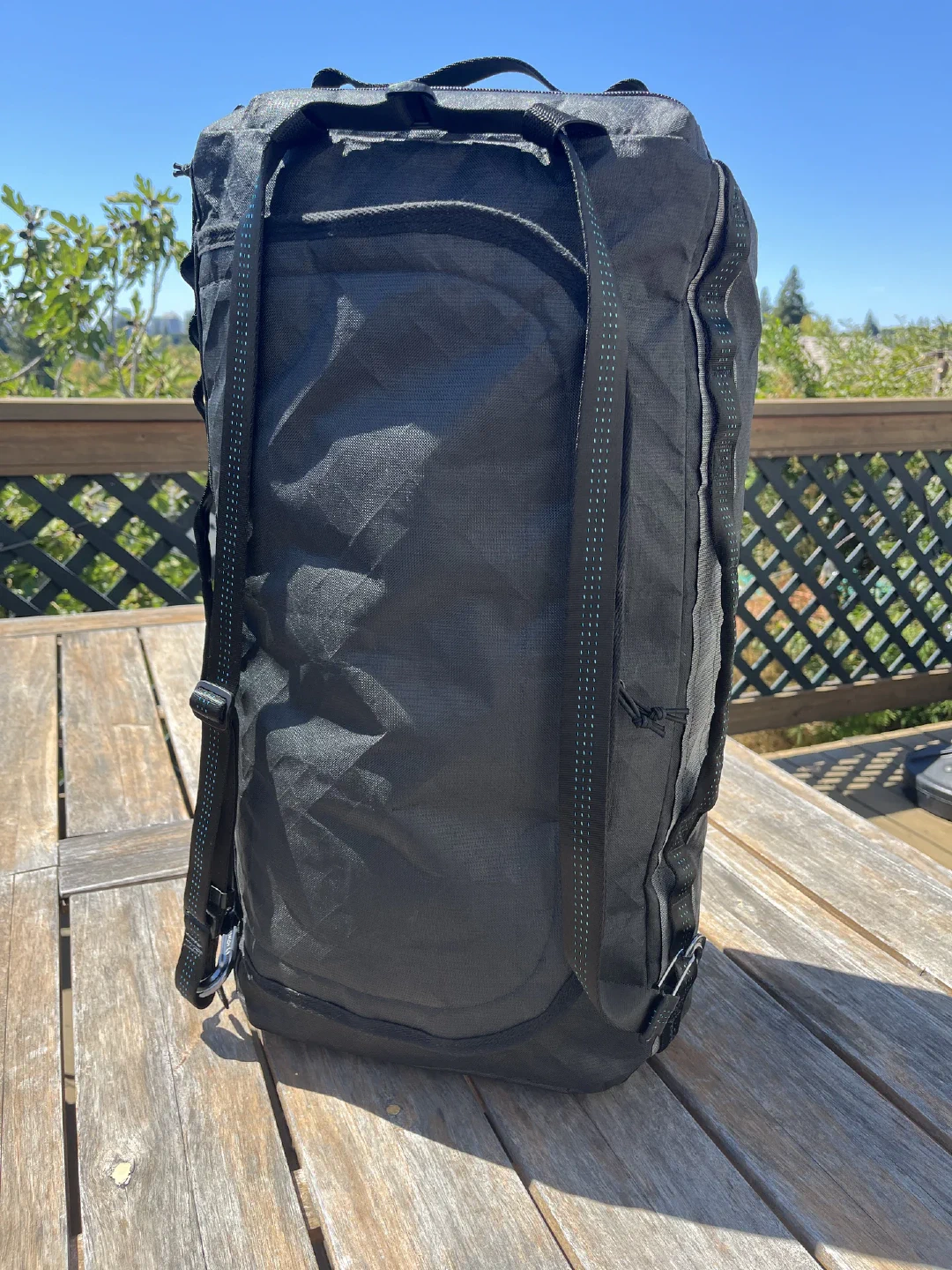

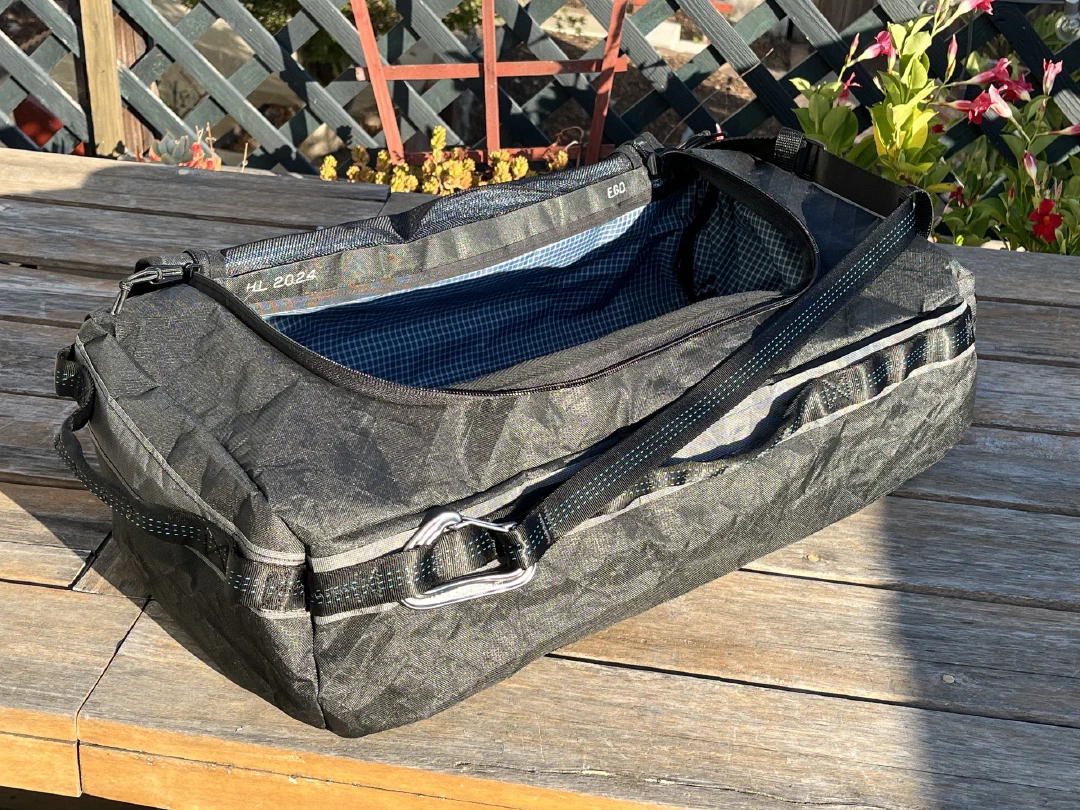

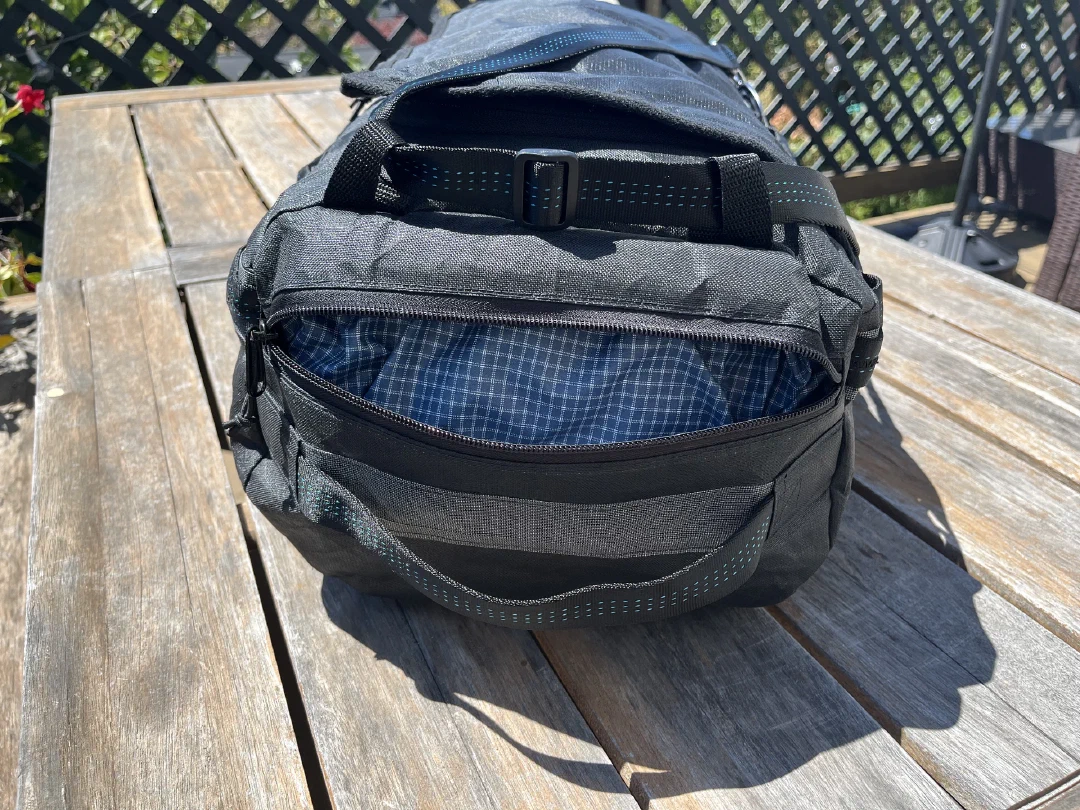

The duffle standing upright on one end, with carry strap carabinered for backpack carry.The finished duffle on a deck table, lid unzipped to show the blue liner.The external end pocket unzipped.

Water resistant travel duffle, sized for carry on and backpack carry.

Internally braced end pocket side to maintain shaped structure while carried as a backpack.

Soft and pliable climbing-grade tubular webbing, rather than flat straps, for comfort while carrying by hand or over shoulder.

Primary materials: Challenge Ultra 100, 200, and 400. Light, water resistant, and durable. Ample daisy chains for clipping the bag to anything, or anything to the bag.

Loosely inspired by the defunct SDR Traveller’s D3 Traveller.

V2

Lined in blue gridstop. Added in this version: an externally accessible end pocket and a hidden AirTag pouch with velcro closure.

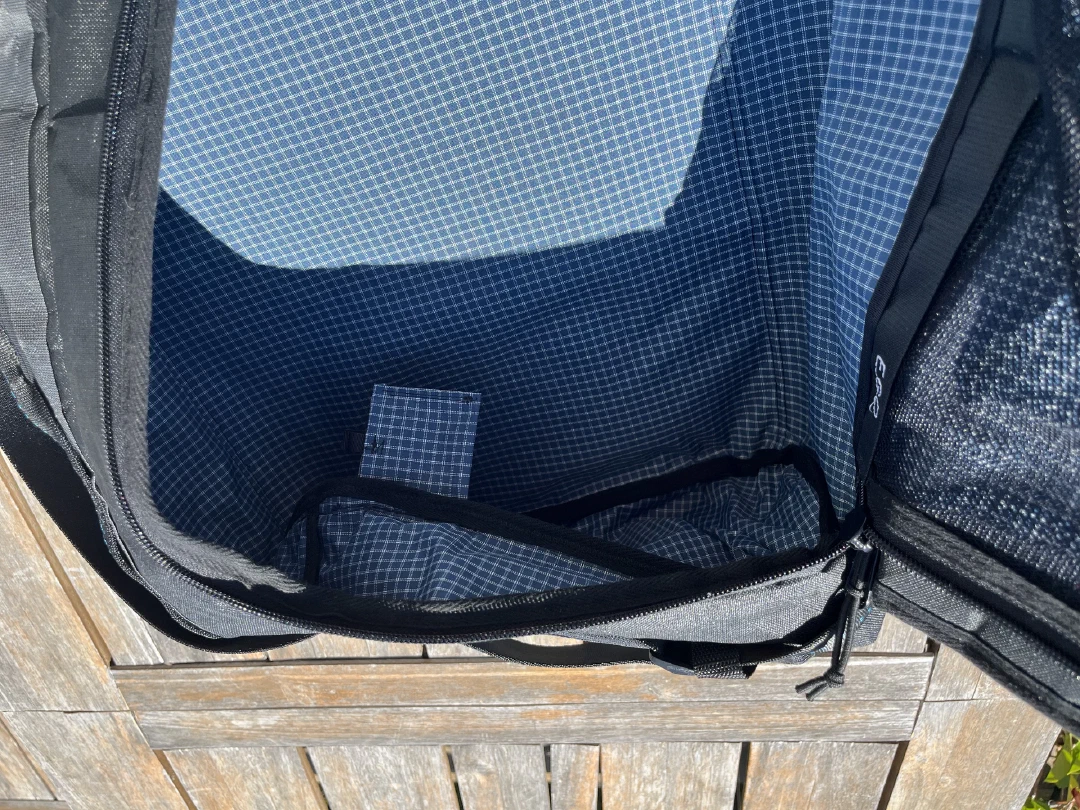

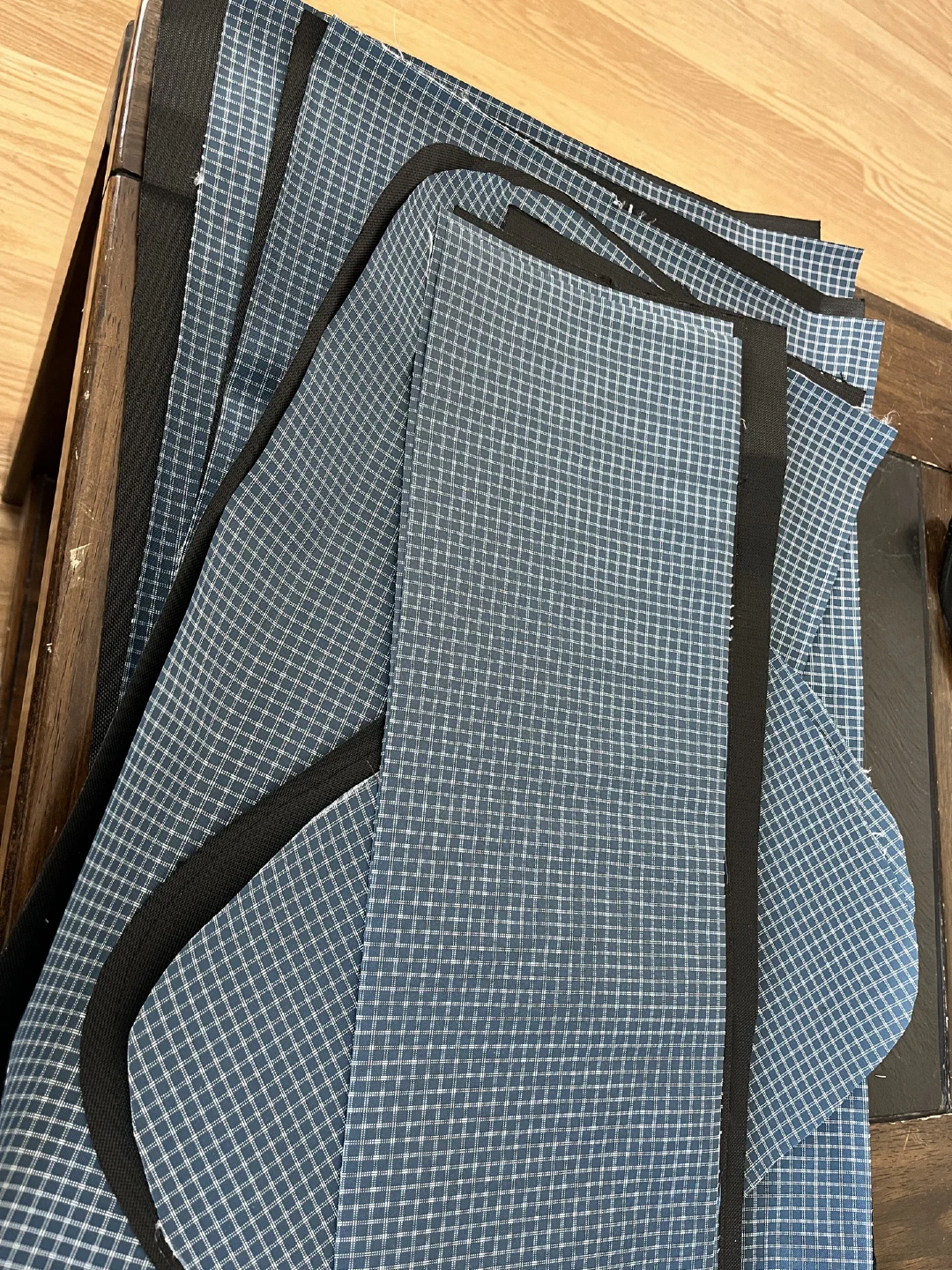

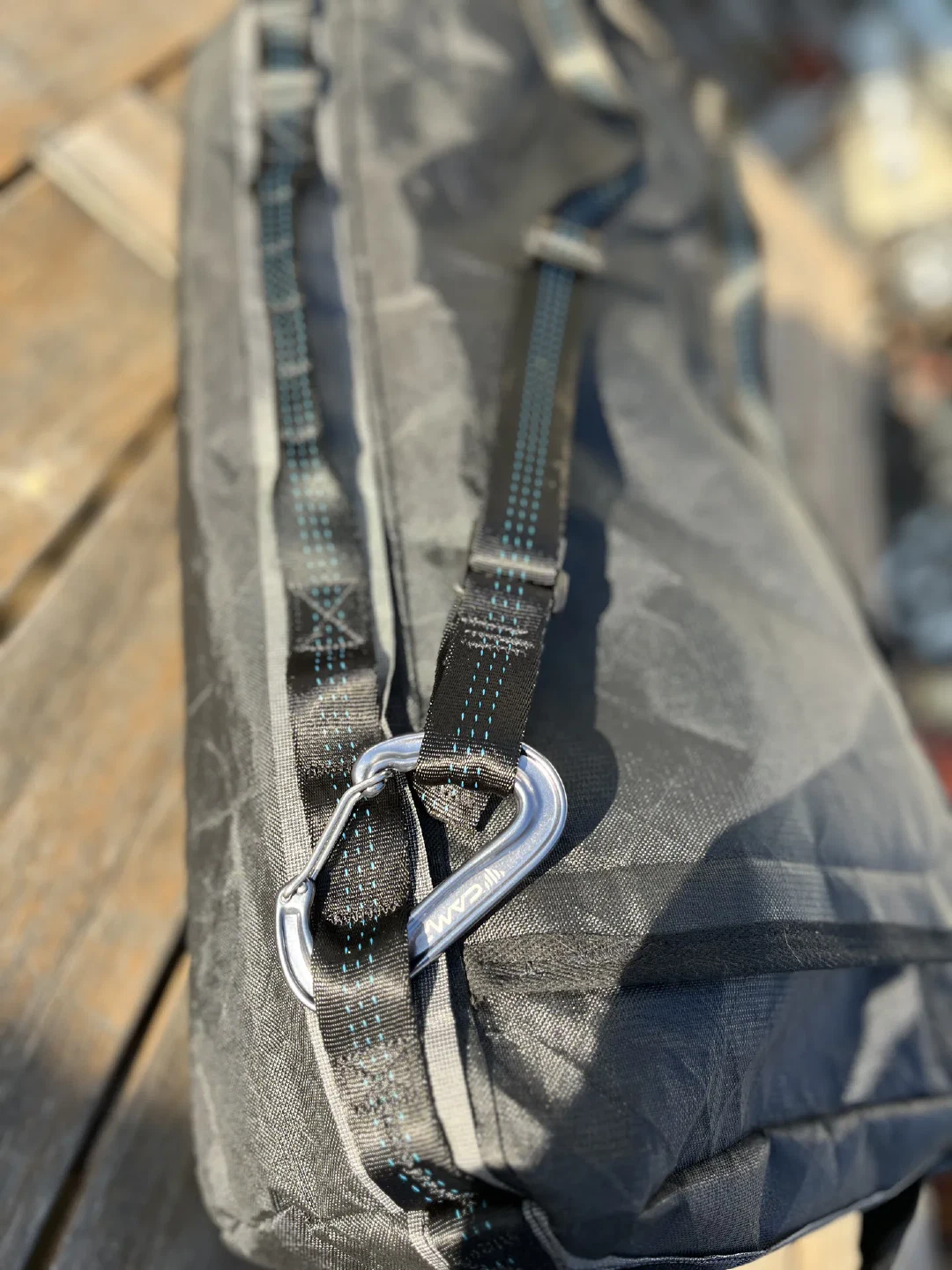

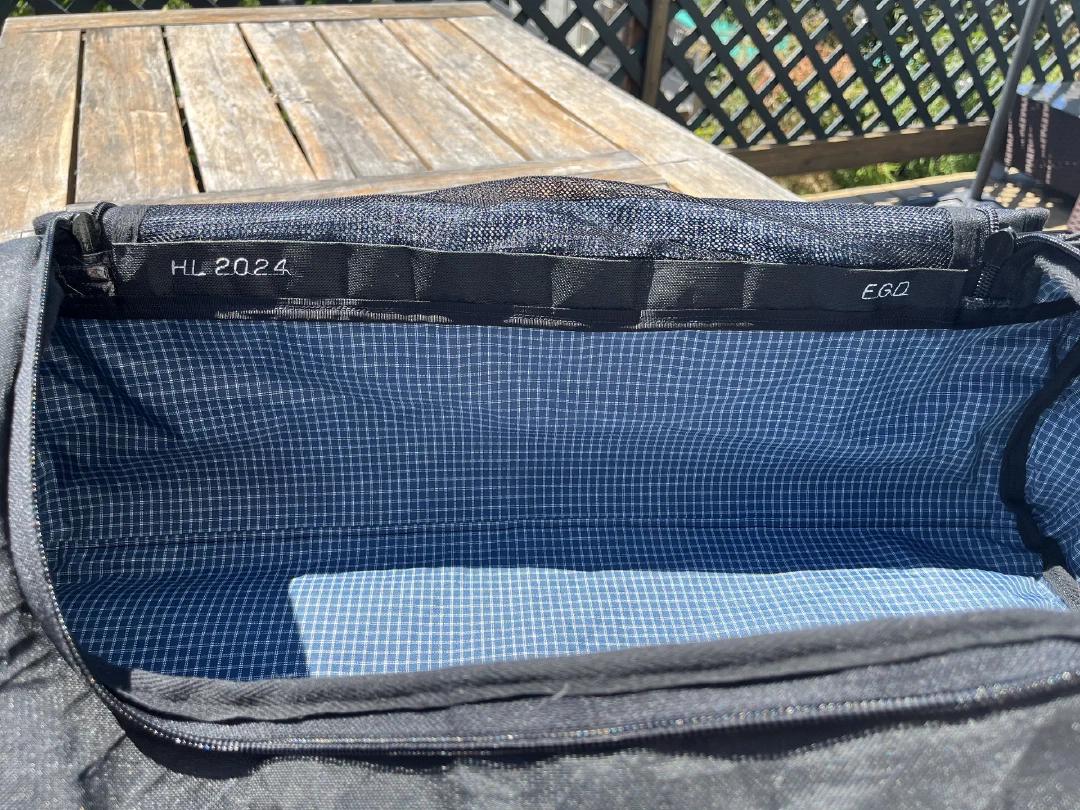

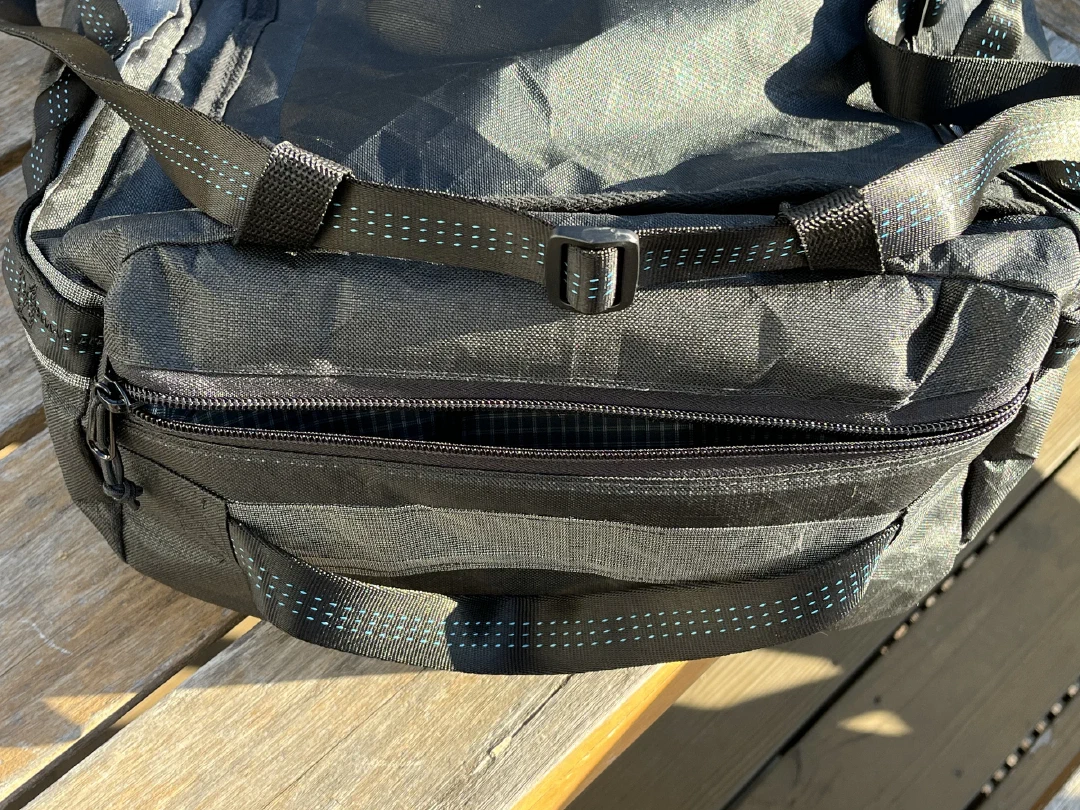

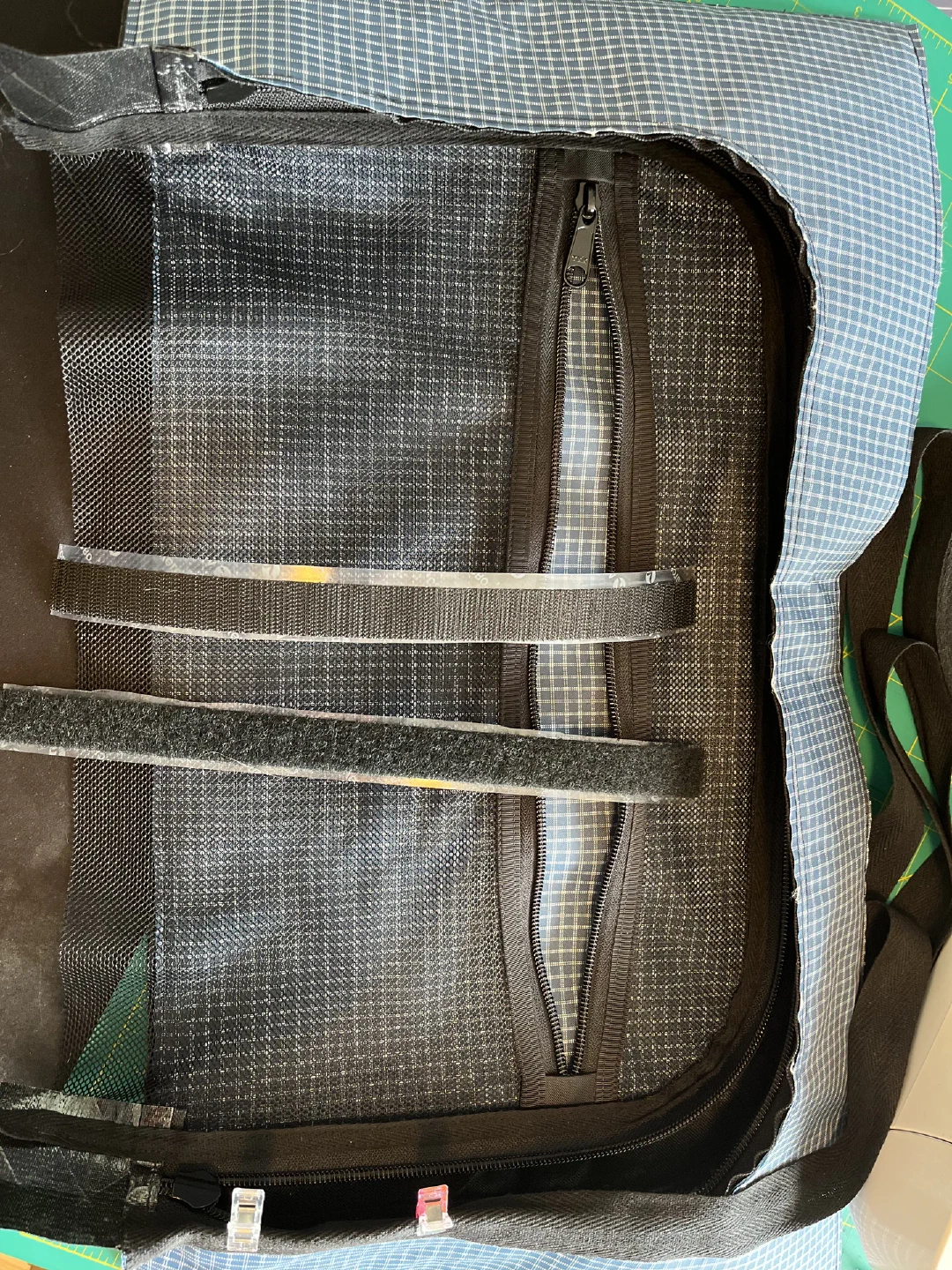

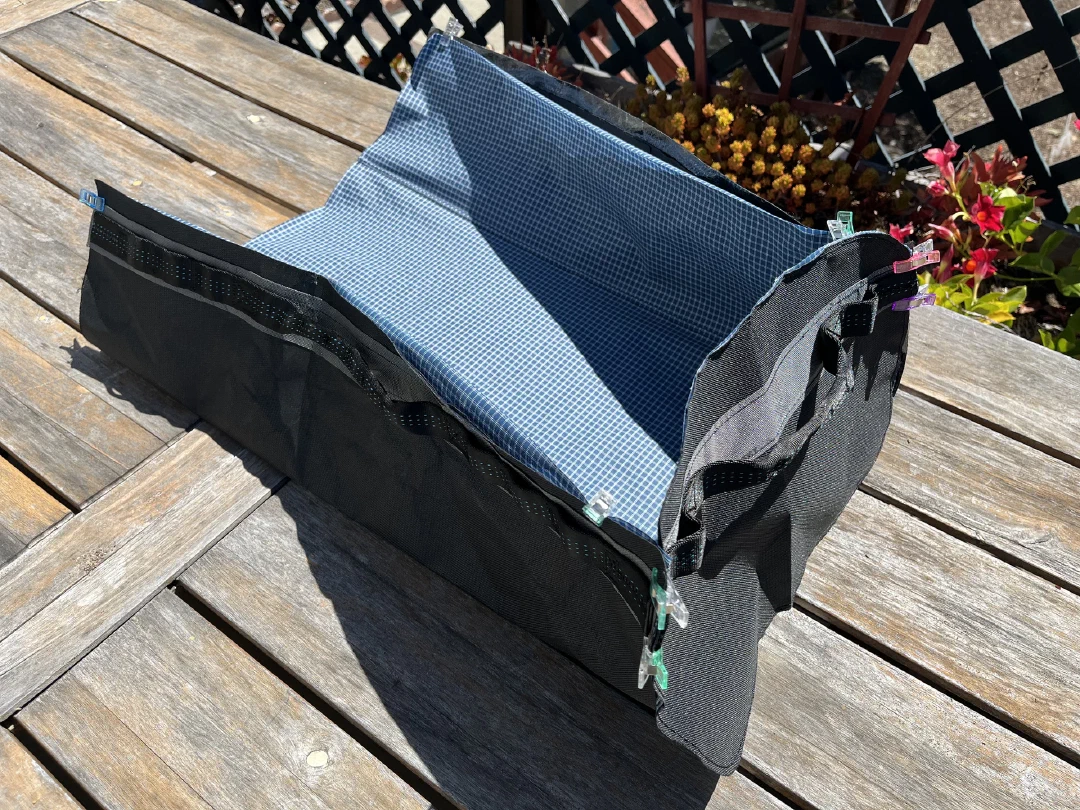

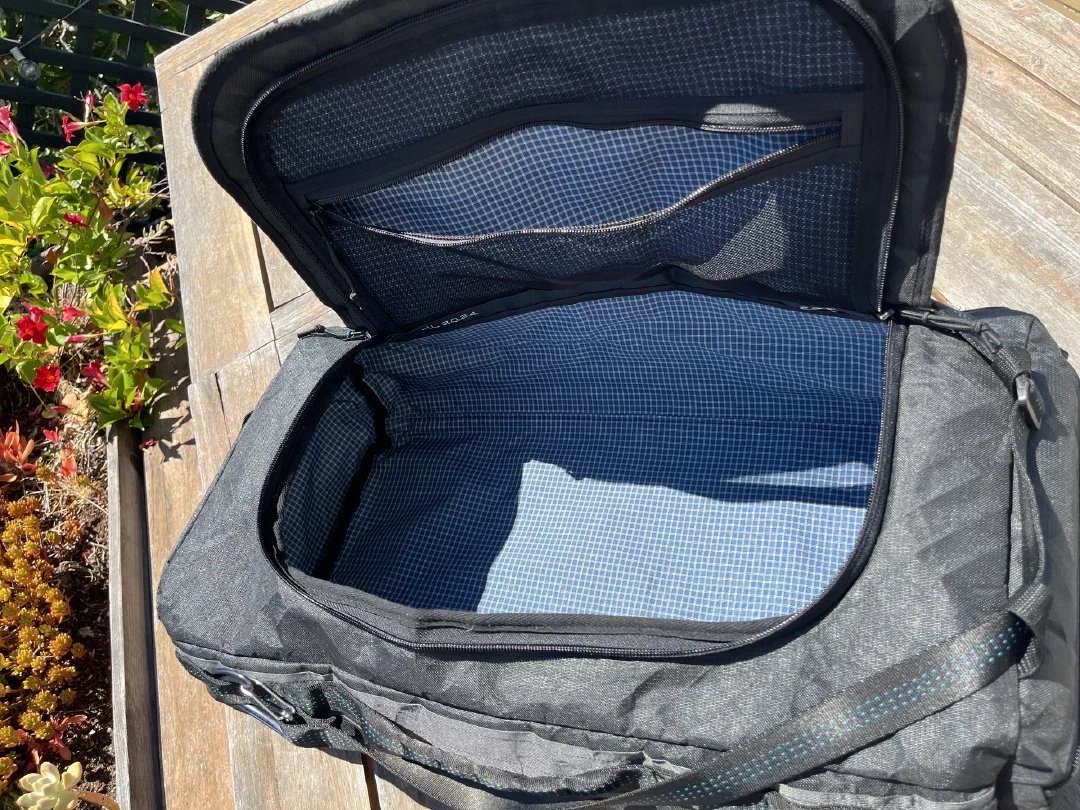

Blue gridstop liner panels cut and edge-bound in black, stacked on the floorThe blue gridstop liner taking shape inside out on a deck tableLid interior mid-build: a zippered mesh pocket on the blue liner, two hook-and-loop strips acrossA carabiner clipped to the strap anchor, triple-stitched webbing belowThe externally accessible end pocket zipped shut above the grab handleThe main compartment open, blue gridstop throughoutConcealed internal AirTag.HL 2024 marked on the lid binding

V1

Lined in grey. Not pictured - hidden internal zip pocket for secure passport stash.

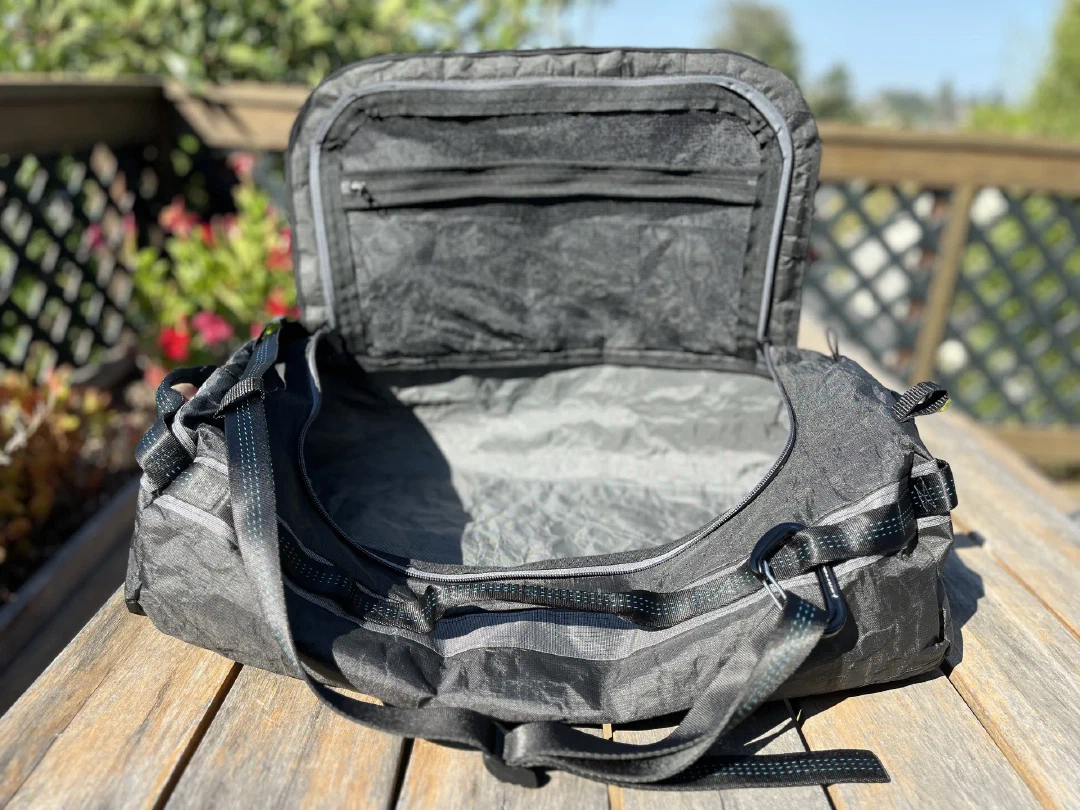

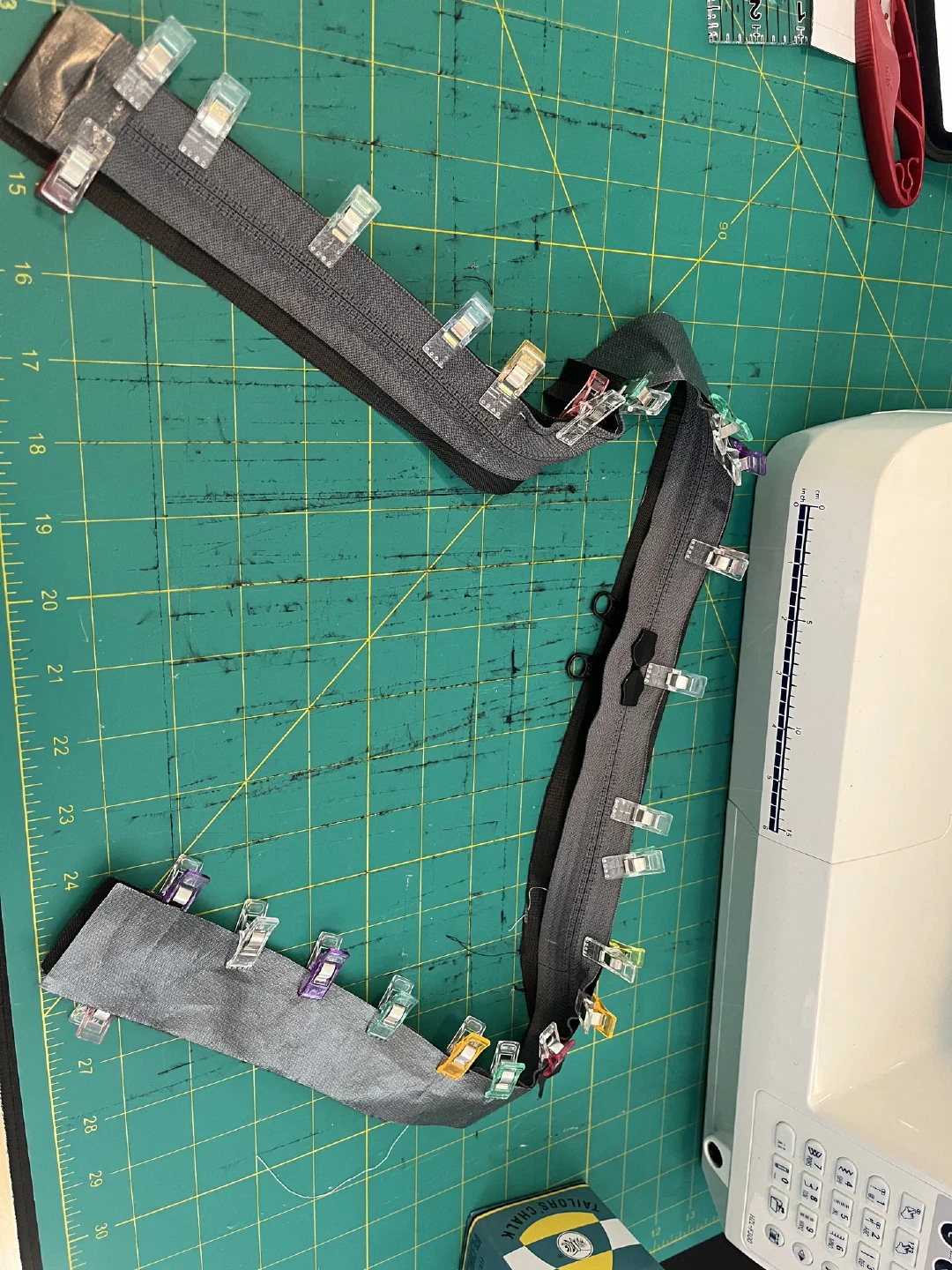

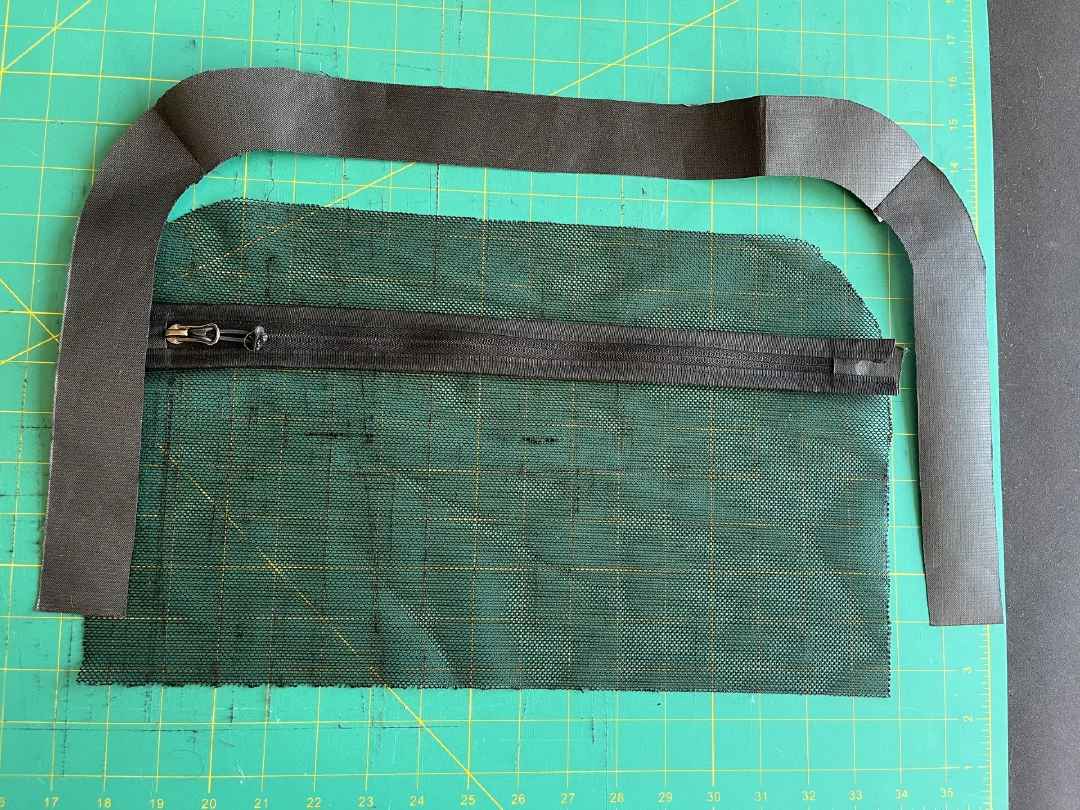

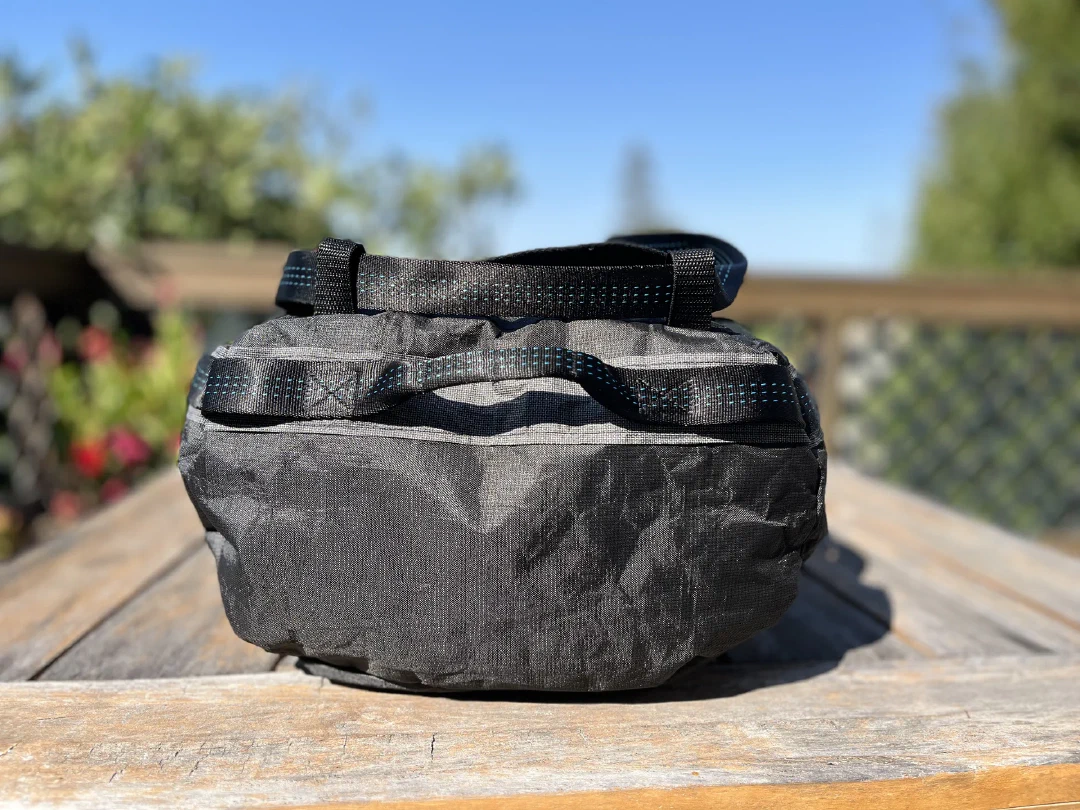

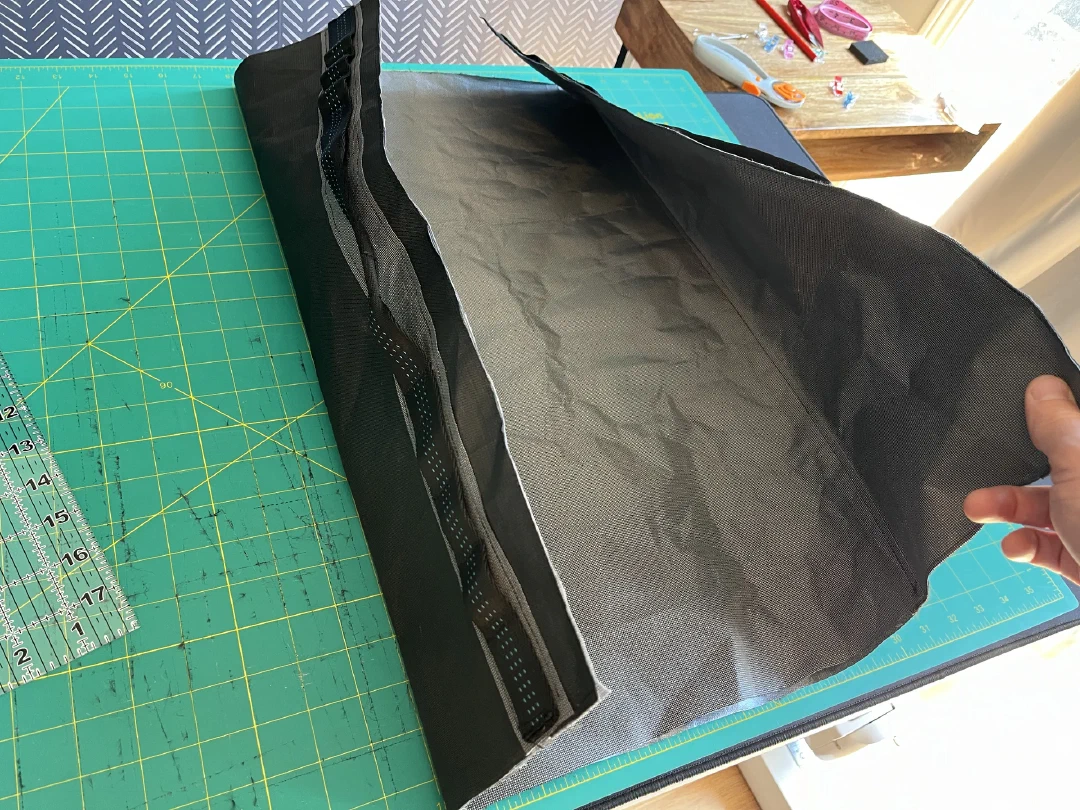

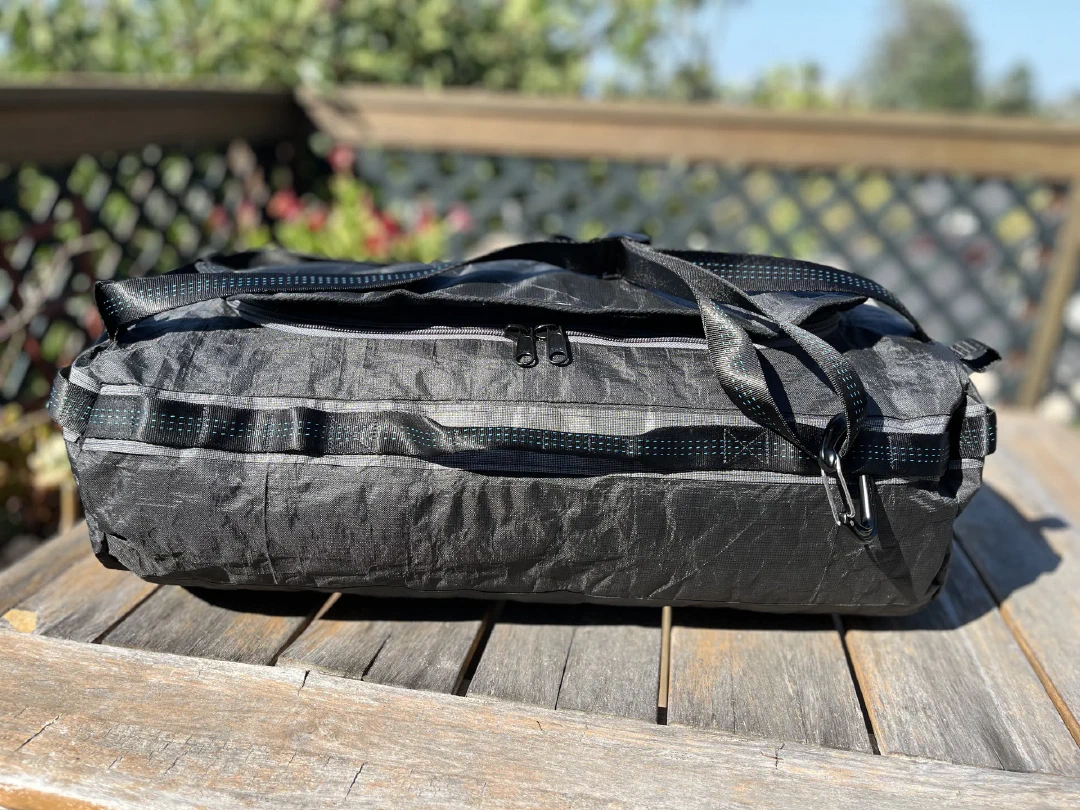

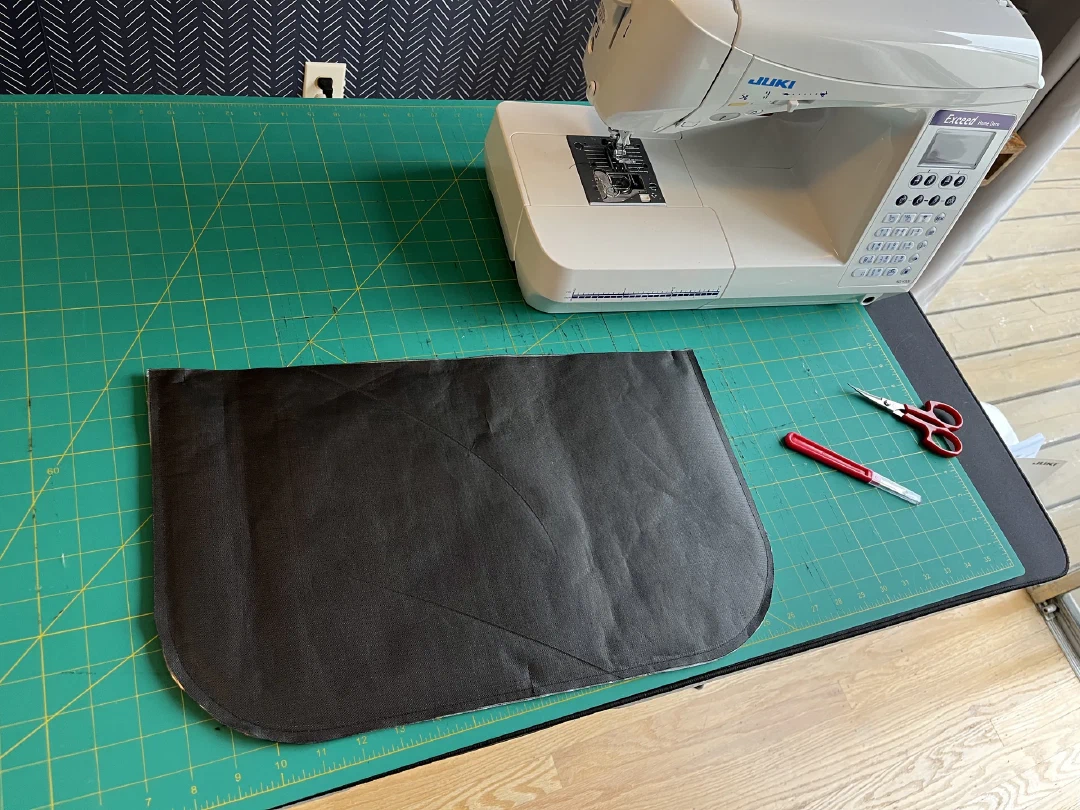

A black Ultra panel cut and ready beside the sewing machineThe main zipper clipped around its curve, ready to sewA zip set into a pocket panel, binding strips alongside on the cutting matThe bag turned right side out, grey liner showingThe finished first version on a deck table in the sunEnd view of the first version: grab handles and the strap crossing overLid open on the first build, grey liner and zippered mesh pocket inside
